Tree-Based Machine Learning Methods for Prediction, Variable Selection and Causal Inference

Part I

Hemant Ishwaran and Min Lu
University of Miami

Brief Overview

This cover covers the following R packages

  1. randomForestSRC: Fast Unified Random Forests for Survival, Regression, and Classification (CRAN link)
  2. randomForestSRC.run: Integrated visualization for the randomForestSRC package (Github link)
  3. varPro: Model-Independent Variable Selection via the Rule-Based Variable Priority (Github link)

Outline

Part I: Training

  1. Quick start
  2. Data structures allowed
  3. Training (grow) with examples
    (regression, classification, survival)

Part II: Inference and Prediction

  1. Inference (OOB)
  2. Prediction Error
  3. Prediction
  4. Restore
  5. Partial Plots

Part III: Variable Selection

  1. VIMP
  2. Subsampling (Confidence Intervals)
  3. Minimal Depth
  4. VarPro

Part IV: Advanced Examples

  1. Class Imbalanced Data
  2. Competing Risks
  3. Multivariate Forests
  4. Missing data imputation

Brief Overview

randomForestSRC is a fast OpenMP and memory efficient package for fitting random forests (RF) for univariate, multivariate, unsupervised, survival, competing risks, class imbalanced classification and quantile regression

Brief Overview

A random forest (RF) [1] consists of a collection of random tree structured predictors {\(h({\bf x},{{\bf\Theta}_b}), b= 1,2,\ldots, B\)} where {\({{\bf\Theta}_b}\)} are independent identically distributed random vectors. The RF predictor is the ensemble \[F_{{\!\text{ens}}}({\bf x})=\frac{1}{B}\sum_{b=1}^B h({\bf x},{{\bf\Theta}_b})\]

Typically, \({{\bf\Theta}_b}\) encode the instructions for bootstrapping the data and for random feature selection used for tree splitting

Brief Overview

rfsrc(formula, data, ntree, mtry, nodesize)

Grow (train) your RF through rfsrc
Specify your model in formula
Provide your data frame in data
Tune your model via ntree, mtry, nodesize

Brief Overview

rfsrc(formula, data, ntree, mtry, nodesize)

Family Example Grow Call with Formula Specification
Survival rfsrc(Surv(time, status)~., data = veteran)
Competing Risk rfsrc(Surv(time, status)~., data = wihs)
Regression
Quantile Regression		 rfsrc(Ozone~., data = airquality)
quantreg(mpg~., data = mtcars)
Classification
Imbalanced Two-Class		 rfsrc(Species~., data = iris)
imbalanced(status~., data = breast)
Multivariate Regression
Multivariate Mixed Regression
Multivariate Quantile Regression
Multivariate Mixed Quantile Regression		 rfsrc(Multivar(mpg, cyl)~., data = mtcars)
rfsrc(cbind(Species,Sepal.Length)~.,data=iris)
quantreg(cbind(mpg, cyl)~., data = mtcars)
quantreg(cbind(Species,Sepal.Length)~.,data=iris)
Unsupervised
sidClustering
Breiman (Shi-Horvath)		 rfsrc(data = mtcars)
sidClustering(data = mtcars)
sidClustering(data = mtcars, method = "sh")

Learn more [2]: https://www.randomforestsrc.org/articles/getstarted.html

Quick Start

# Run this if you haven’t installed the R package
install.packages("randomForestSRC", repos = "https://cran.us.r-project.org")

Quick Start

flowchart LR
  A[Grow a forest] --> B[Check the output] --> C[Make the prediction]

Quick Start

flowchart LR
  A[<h3 style="color:darkgreen">Grow a forest</h3>] --> B[Check the output] --> C[Make the prediction]


library(randomForestSRC)
# New York air quality measurements. Mean ozone in parts per billion.
airq.obj <- rfsrc(Ozone ~ ., data = airquality)

Quick Start

flowchart LR
  A[Grow a forest] --> B[<h3 style="color:darkgreen">Check the output</h3>] --> C[Make the prediction]


library(randomForestSRC)
# New York air quality measurements. Mean ozone in parts per billion.
airq.obj <- rfsrc(Ozone ~ ., data = airquality)
print(airq.obj)


>  1                           Sample size: 111
>  2                       Number of trees: 500
>  3             Forest terminal node size: 5
>  4         Average no. of terminal nodes: 14.68
>  5  No. of variables tried at each split: 2
>  6                Total no. of variables: 5
>  7         Resampling used to grow trees: swor
>  8      Resample size used to grow trees: 70
>  9                              Analysis: RF-R
>  10                               Family: regr
>  11                       Splitting rule: mse *random*
>  12        Number of random split points: 10
>  13                      (OOB) R squared: 0.70871819
>  14    (OOB) Requested performance error: 322.53346594

Quick Start

Tip

The last line(s) will show the cross validated prediction performance

>  13                      (OOB) R squared: 0.70871819
>  14    (OOB) Requested performance error: 322.53346594
  • Model performance is displayed in the last two lines in terms of out-of-bag (OOB) prediction error. In regression, this the cross-validated (leave-one-out bootstrap) mean squared error (MSE) estimated via the out-of-bag data shown in line 14
  • Since MSE is scale dependent, standardized MSE, defined as the MSE divided by the variance of the outcome, is used and converted to R squared (or percent variance explained) which has an intuitive and universal interpretation, shown in line 13

What is OOB prediction error?

  • Since each tree is grown from a random subset (bootstrap) of the data, the package returns both out-of-sample and in-sample predicted values from the forest, where the former are calculated using the hold out data for each tree ($predicted.oob), and the latter are from the bootstrap data used to train the tree ($predicted)
  • Only $predicted.oob should be used for inference on the training data since they are cross-validated and will not over-fit the data.
>  13                      (OOB) R squared: 0.70871819
>  14    (OOB) Requested performance error: 322.53346594

we can get the error rate (mean-squared error) directly from the OOB ensemble by comparing the response to the OOB predictor below

print(mean((airq.obj$yvar - airq.obj$predicted.oob)^2))
> [1] 322.53346594

Learn more [3]: https://www.randomforestsrc.org/articles/forestWgt.html

Prediction error

Family Prediction Error
Regression
Quantile Regression		 mean-squared error
mean-squared error
Classification
Imbalanced Two-Class		 misclassification, Brier score
G-mean, misclassification, Brier score
Survival Harrell’s C-index (1 minus concordance)
Competing Risk Harrell’s C-index (1 minus concordance)
Multivariate Regression
Multivariate Classification
Multivariate Mixed Regression
Multivariate Quantile Regression		 per response: same as above for Regression
per response: same as above for Classification
per response: same as above for Regression, Classification
same as Multivariate Regression
Unsupervised
sidClustering
Breiman (Shi-Horvath)		 none
same as Multivariate Mixed Regression
same as Classification

Quick Start

Output (Values/Verbose)
library(randomForestSRC)
# New York air quality measurements. Mean ozone in parts per billion.
airq.obj <- rfsrc(Ozone ~ ., data = airquality)
print(airq.obj)


>  1                           Sample size: 111
>  2                       Number of trees: 500
>  3             Forest terminal node size: 5
>  4         Average no. of terminal nodes: 14.68
>  5  No. of variables tried at each split: 2
>  6                Total no. of variables: 5
>  7         Resampling used to grow trees: swor
>  8      Resample size used to grow trees: 70
>  9                              Analysis: RF-R
>  10                               Family: regr
>  11                       Splitting rule: mse *random*
>  12        Number of random split points: 10
>  13                      (OOB) R squared: 0.70871819
>  14    (OOB) Requested performance error: 322.53346594




Corresponding input (arguments)
rfsrc(…, ntree = 500)

Quick Start

Output (Values/Verbose)
library(randomForestSRC)
# New York air quality measurements. Mean ozone in parts per billion.
airq.obj <- rfsrc(Ozone ~ ., data = airquality)
print(airq.obj)


>  1                           Sample size: 111
>  2                       Number of trees: 500
>  3             Forest terminal node size: 5
>  4         Average no. of terminal nodes: 14.68
>  5  No. of variables tried at each split: 2
>  6                Total no. of variables: 5
>  7         Resampling used to grow trees: swor
>  8      Resample size used to grow trees: 70
>  9                              Analysis: RF-R
>  10                               Family: regr
>  11                       Splitting rule: mse *random*
>  12        Number of random split points: 10
>  13                      (OOB) R squared: 0.70871819
>  14    (OOB) Requested performance error: 322.53346594





Corresponding input (arguments)
rfsrc(…, nodesize = 5)

line 4 displays the average number of terminal nodes for a tree

Quick Start

Output (Values/Verbose)
library(randomForestSRC)
# New York air quality measurements. Mean ozone in parts per billion.
airq.obj <- rfsrc(Ozone ~ ., data = airquality)
print(airq.obj)


>  1                           Sample size: 111
>  2                       Number of trees: 500
>  3             Forest terminal node size: 5
>  4         Average no. of terminal nodes: 14.68
>  5  No. of variables tried at each split: 2
>  6                Total no. of variables: 5
>  7         Resampling used to grow trees: swor
>  8      Resample size used to grow trees: 70
>  9                              Analysis: RF-R
>  10                               Family: regr
>  11                       Splitting rule: mse *random*
>  12        Number of random split points: 10
>  13                      (OOB) R squared: 0.70871819
>  14    (OOB) Requested performance error: 322.53346594





Corresponding input (arguments)
rfsrc(…, mtry = NULL)

lines 5 and 6 are related to mtry, which is the number of variables to possibly split at each node

Default is number of variables divided by 3 for regression. For all other families (including unsupervised settings), it is the square root of number of variables. Values are rounded up

Quick Start

Output (Values/Verbose)
library(randomForestSRC)
# New York air quality measurements. Mean ozone in parts per billion.
airq.obj <- rfsrc(Ozone ~ ., data = airquality)
print(airq.obj)


>  1                           Sample size: 111
>  2                       Number of trees: 500
>  3             Forest terminal node size: 5
>  4         Average no. of terminal nodes: 14.68
>  5  No. of variables tried at each split: 2
>  6                Total no. of variables: 5
>  7         Resampling used to grow trees: swor
>  8      Resample size used to grow trees: 70
>  9                              Analysis: RF-R
>  10                               Family: regr
>  11                       Splitting rule: mse *random*
>  12        Number of random split points: 10
>  13                      (OOB) R squared: 0.70871819
>  14    (OOB) Requested performance error: 322.53346594






Corresponding input (arguments)
rfsrc(…, samptype ="swor")

where “swor” refers to sampling without replacement and “swr” refers to sampling with replacement

line 8 displays the sample size for line 7 where for swor, the number equals to about 63.2% observations, which matches the usual bootstrap sample size

Quick Start

Output (Values/Verbose)
library(randomForestSRC)
# New York air quality measurements. Mean ozone in parts per billion.
airq.obj <- rfsrc(Ozone ~ ., data = airquality)
print(airq.obj)


>  1                           Sample size: 111
>  2                       Number of trees: 500
>  3             Forest terminal node size: 5
>  4         Average no. of terminal nodes: 14.68
>  5  No. of variables tried at each split: 2
>  6                Total no. of variables: 5
>  7         Resampling used to grow trees: swor
>  8      Resample size used to grow trees: 70
>  9                              Analysis: RF-R
>  10                               Family: regr
>  11                       Splitting rule: mse *random*
>  12        Number of random split points: 10
>  13                      (OOB) R squared: 0.70871819
>  14    (OOB) Requested performance error: 322.53346594








Explanation

line 9 and 10 show the type of forest where RF-R and regr refer to regression

Quick Start

Output (Values/Verbose)
library(randomForestSRC)
# New York air quality measurements. Mean ozone in parts per billion.
airq.obj <- rfsrc(Ozone ~ ., data = airquality)
print(airq.obj)


>  1                           Sample size: 111
>  2                       Number of trees: 500
>  3             Forest terminal node size: 5
>  4         Average no. of terminal nodes: 14.68
>  5  No. of variables tried at each split: 2
>  6                Total no. of variables: 5
>  7         Resampling used to grow trees: swor
>  8      Resample size used to grow trees: 70
>  9                              Analysis: RF-R
>  10                               Family: regr
>  11                       Splitting rule: mse *random*
>  12        Number of random split points: 10
>  13                      (OOB) R squared: 0.70871819
>  14    (OOB) Requested performance error: 322.53346594









Corresponding input (arguments)
rfsrc(…, splitrule =“mse")

Quick Start

Output (Values/Verbose)
library(randomForestSRC)
# New York air quality measurements. Mean ozone in parts per billion.
airq.obj <- rfsrc(Ozone ~ ., data = airquality)
print(airq.obj)


>  1                           Sample size: 111
>  2                       Number of trees: 500
>  3             Forest terminal node size: 5
>  4         Average no. of terminal nodes: 14.68
>  5  No. of variables tried at each split: 2
>  6                Total no. of variables: 5
>  7         Resampling used to grow trees: swor
>  8      Resample size used to grow trees: 70
>  9                              Analysis: RF-R
>  10                               Family: regr
>  11                       Splitting rule: mse *random*
>  12        Number of random split points: 10
>  13                      (OOB) R squared: 0.70871819
>  14    (OOB) Requested performance error: 322.53346594










Corresponding input (arguments)
rfsrc(…, nsplit = 10)

which shows the number of random splits to consider for each candidate splitting variable

Quick Start

flowchart LR
  A[Grow a forest] --> B[Check the output] --> C[<h3 style="color:darkgreen">Make the prediction</h3>]

Predicted outcome

library(randomForestSRC)
# New York air quality measurements. Mean ozone in parts per billion.
airq.obj <- rfsrc(Ozone ~ ., data = airquality[-c(1:10),])
head(airq.obj$predicted.oob)
>  21.97727  25.38251  21.26051  12.87687  24.10623

Prediction on new data

airq.pred <- predict(airq.obj, newdata = airquality[c(1:10),])
head(airq.pred$predicted)
>  35.43525 23.75033 25.86907 24.55133 29.10551

Data

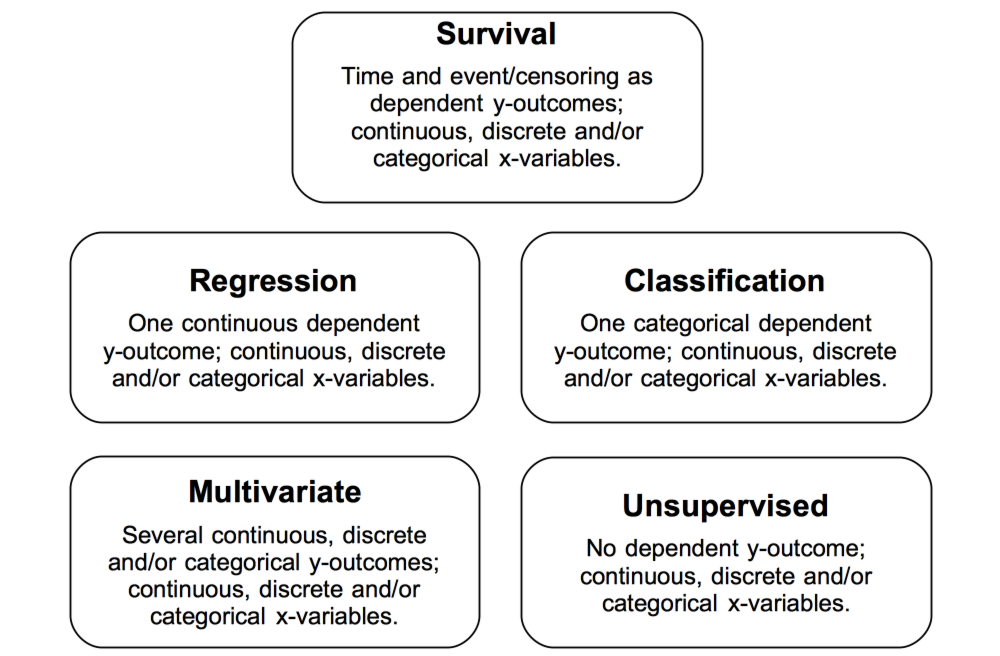

Data structures allowed

Data must be real or factors and in data.frame format and you have to use the as.data.frame() command to convert matrix, tibble, etc

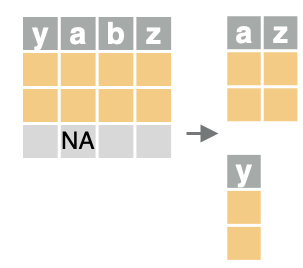

Clean up your data

Choose your variables in formula and grow a tree

o <- rfsrc(y ~ a + z, data= dta, ntree = 1)

your outcome(s) will be saved in o$yvar and your predictors are in o$xvar from dta without missing values

Impute your data

To impute your data, use the following commands

o <- impute(y ~ ., data = dta, nimpute = 3) # for supervised problem
o <- impute(data = dta) # for unsupervised problem

Tip: factors or characters

Unlike lm(), glm(), or machine learning packages like ranger, rfsrc() does not require contrast/dummy coding

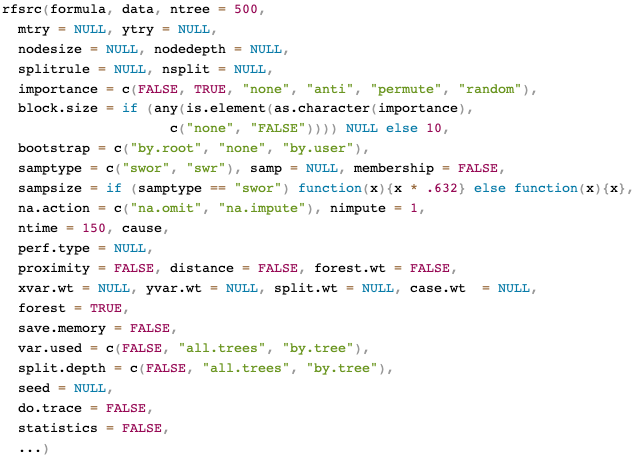

General call to rfsrc

General call to rfsrc.cart

rfsrc.cart(formula, data, ntree = 1, mtry = ncol(data), bootstrap = “none”, …)

Tip: convenient interface for growing a Classification And Regression Tree (CART)

rfsrc.cart() is useful for growing single trees of almost any type

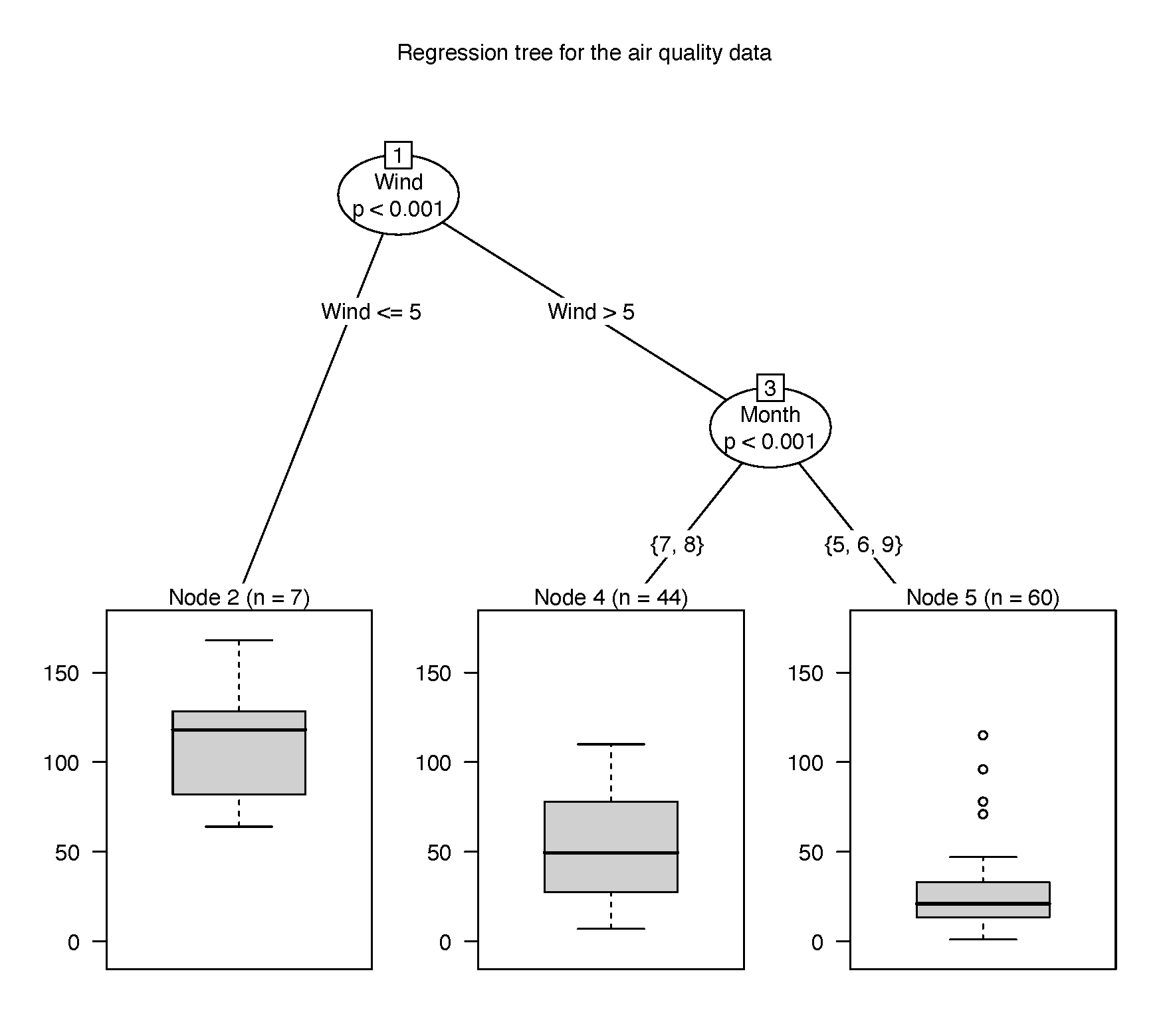

Visualizing a CART tree

Tip:

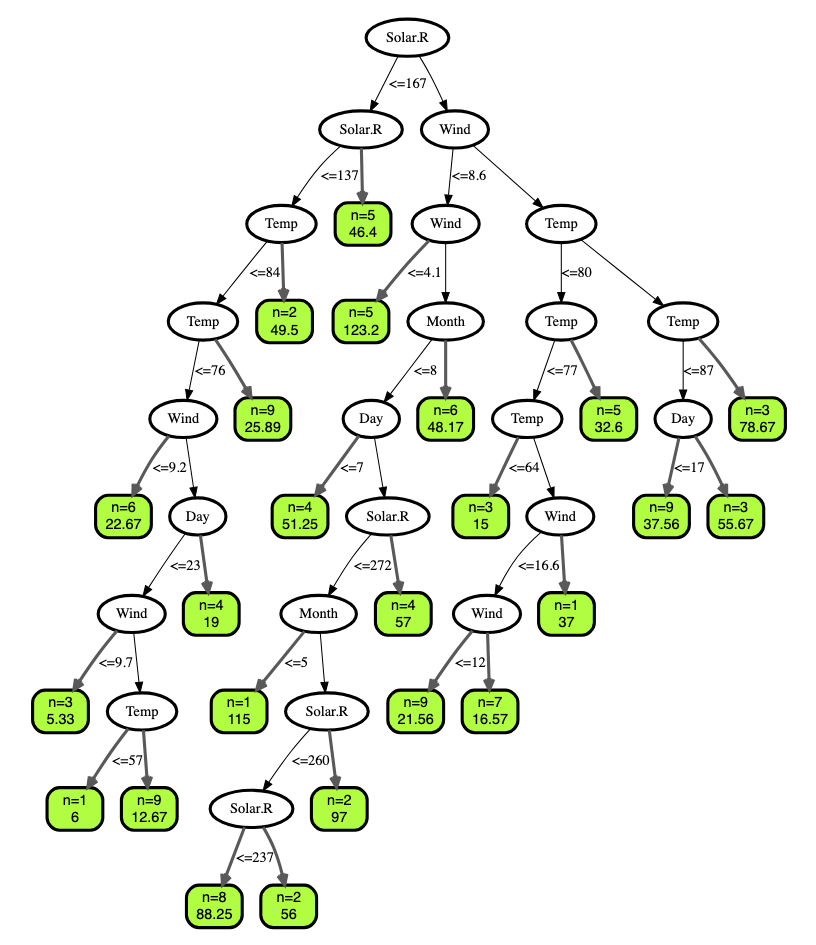

get.tree() is useful for visualizing a single tree from a rfsrc.cart or rfsrc object specified by tree.id

## visualizing a tree from a rfsrc.cart object
airq.tree <- rfsrc.cart(Ozone ~ ., data = airquality)

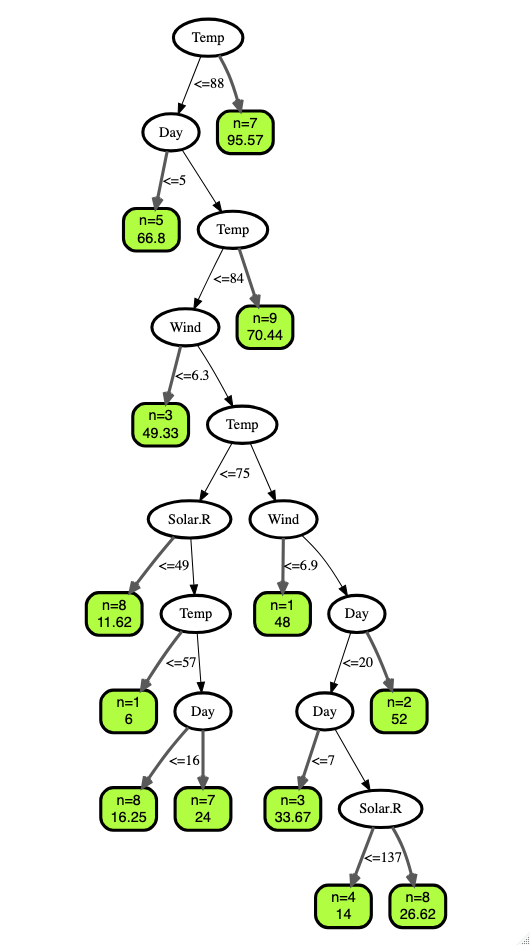

plot(get.tree(airq.tree, tree.id = 1))

Visualizing a CART tree

Tip:

get.tree() is useful for visualizing a single tree from a rfsrc.cart or rfsrc object specified by tree.id

## visualizing a tree from a rfsrc object
plot(get.tree(airq.obj, tree.id = 3))

Nonparametric regression


Family Example Grow Call with Formula Specification
Regression
Quantile Regression		 rfsrc(Ozone~., data = airquality)
quantreg(mpg~., data = mtcars)
Classification
Imbalanced Two-Class		 rfsrc(Species~., data = iris)
imbalanced(status~., data = breast)
Survival rfsrc(Surv(time, status)~., data = veteran)
Competing Risk rfsrc(Surv(time, status)~., data = wihs)
Multivariate Regression
Multivariate Mixed Regression
Multivariate Quantile Regression
Multivariate Mixed Quantile Regression		 rfsrc(Multivar(mpg, cyl)~., data = mtcars)
rfsrc(cbind(Species,Sepal.Length)~.,data=iris)
quantreg(cbind(mpg, cyl)~., data = mtcars)
quantreg(cbind(Species,Sepal.Length)~.,data=iris)
Unsupervised
sidClustering
Breiman (Shi-Horvath)		 rfsrc(data = mtcars)
sidClustering(data = mtcars)
sidClustering(data = mtcars, method = "sh")

Nonparametric regression

The goal is to estimate \(F({\bf{x}})=E(Y|{\bf{X}}={\bf{x}})\) by minimizing the empirical risk functional \[ R_n(F) = \frac{1}{n}\sum_{i=1}^n (Y_i-F({\bf{x}}_i))^2 \] The tree accomplishes this piece-by-piece. For a node \(t\), the tree replaces the node estimator \({\overline{Y}}_t\) by daughter node estimators \({\overline{Y}}_{t_L}\) and \({\overline{Y}}_{t_R}\)

Nonparametric regression

The empirical risk reduction from this split of \(t\) into its daughers \(t_L\) and \(t_R\) is \[ \frac{1}{n}\sum_{i\in t} (Y_i-{\overline{Y}}_t)^2 -\Bigg[\frac{1}{n}\sum_{i\in t_L} (Y_i-{\overline{Y}}_{t_L})^2 + \frac{1}{n}\sum_{i\in t_R} (Y_i-{\overline{Y}}_{t_R})^2\Bigg] \] Maximizing this decrease is equivalent to minimizing \[ \frac{1}{n}\sum_{i\in t_L} (Y_i-{\overline{Y}}_{t_L})^2 + \frac{1}{n}\sum_{i\in t_R} (Y_i-{\overline{Y}}_{t_R})^2 \] This leads to the weighted variance (mse) splitting used by CART and RF

Split rules for regression


Family splitrule
Regression
Quantile Regression		 mse
la.quantile.regr, quantile.regr,mse
Classification
Imbalanced Two-Class		 gini, auc, entropy
gini, auc, entropy
Survival logrank, bs.gradient, logrankscore
Competing Risk logrankCR, logrank
Multivariate Regression
Multivariate Classification
Multivariate Mixed Regression
Multivariate Quantile Regression
Multivariate Mixed Quantile Regression		 mv.mse, mahalanobis
mv.gini
mv.mix
mv.mse
mv.mix
Unsupervised
sidClustering
Breiman (Shi-Horvath)		 unsupv
\(\{\)mv.mse, mv.gini, mv.mix\(\}\), mahalanobis
gini, auc, entropy

Mean-squared error (mse) splitting rule

Let \(Y_1,\ldots,Y_n\) be the outcomes in \(t\), the mse split-statistic for a proposed split \(s\) is \[D(s,t)=\frac{1}{n}\sum_{i\in t_L}(Y_i-\overline{Y}_{t_L})^2 + \frac{1}{n}\sum_{i\in t_R}(Y_i-\overline{Y}_{t_R})^2\] where

            \(t_L=\{X_i\le s\}\)    and    \(t_R=\{X_i>s\}\)


are the left and right daughter nodes and

             \(\overline{Y}_{t_L}=\frac{1}{n}\sum_{i\in t_L}Y_i\)    and    \(\overline{Y}_{t_R}=\frac{1}{n}\sum_{i\in t_R}Y_i\)

are the sample means for \(t_L\) and \(t_R\) respectively. The best split for \(X\) is the split-point \(s\) minimizing \(D(s,t)\) [4]

Mean-squared error (mse) splitting rule

Mean-squared error (mse) splitting rule

Let \(Y_1,\ldots,Y_n\) be the outcomes in \(t\), the mse split-statistic for a proposed split \(s\) is \[D(s,t)=\frac{1}{n}\sum_{i\in t_L}(Y_i-\overline{Y}_{t_L})^2 + \frac{1}{n}\sum_{i\in t_R}(Y_i-\overline{Y}_{t_R})^2\] where

            \(t_L=\{X_i\le s\}\)    and    \(t_R=\{X_i>s\}\)


are the left and right daughter nodes and

             \(\overline{Y}_{t_L}=\frac{1}{n}\sum_{i\in t_L}Y_i\)    and    \(\overline{Y}_{t_R}=\frac{1}{n}\sum_{i\in t_R}Y_i\)

are the sample means for \(t_L\) and \(t_R\) respectively. The best split for \(X\) is the split-point \(s\) minimizing \(D(s,t)\) [4]

Key quantities

The key quantities returned by the package are

o$predicted       --->   inbag estimated conditional mean
o$predicted.oob   --->   OOB estimated conditional mean

Regression example: Iowa housing

Ames Iowa Housing Data

Data from the Ames Assessor’s Office used in assessing values of individual residential properties sold in Ames, Iowa from 2006 to 2010. This is a regression problem and the goal is to predict “SalePrice” which records the price of a home in thousands of dollars [5]

PID MS.SubClass MS.Zoning Lot.Frontage Lot.Area Street Alley Lot.Shape Land.Contour Utilities Lot.Config Land.Slope Neighborhood Condition.1 Condition.2 Bldg.Type House.Style Overall.Qual Overall.Cond Year.Built Year.Remod.Add Roof.Style Roof.Matl Exterior.1st Exterior.2nd Mas.Vnr.Type Mas.Vnr.Area Exter.Qual Exter.Cond Foundation Bsmt.Qual Bsmt.Cond Bsmt.Exposure BsmtFin.Type.1 BsmtFin.SF.1 BsmtFin.Type.2 BsmtFin.SF.2 Bsmt.Unf.SF Total.Bsmt.SF Heating Heating.QC Central.Air Electrical X1st.Flr.SF X2nd.Flr.SF Low.Qual.Fin.SF Gr.Liv.Area Bsmt.Full.Bath Bsmt.Half.Bath Full.Bath Half.Bath Bedroom.AbvGr Kitchen.AbvGr Kitchen.Qual TotRms.AbvGrd Functional Fireplaces Fireplace.Qu Garage.Type Garage.Yr.Blt Garage.Finish Garage.Cars Garage.Area Garage.Qual Garage.Cond Paved.Drive Wood.Deck.SF Open.Porch.SF Enclosed.Porch X3Ssn.Porch Screen.Porch Pool.Area Pool.QC Fence Misc.Feature Misc.Val Mo.Sold Yr.Sold Sale.Type Sale.Condition SalePrice
526301100 20 RL 141 31770 Pave noAlleyAccess IR1 Lvl AllPub Corner Gtl NAmes Norm Norm 1Fam 1Story 6 5 1960 1960 Hip CompShg BrkFace Plywood Stone 112 TA TA CBlock TA Gd Gd BLQ 639 Unf 0 441 1080 GasA Fa Y SBrkr 1656 0 0 1656 1 0 1 0 3 1 TA 7 Typ 2 Gd Attchd 1960 Fin 2 528 TA TA P 210 62 0 0 0 0 noPool noFence none 0 5 2010 WD Normal 215000
526350040 20 RH 80 11622 Pave noAlleyAccess Reg Lvl AllPub Inside Gtl NAmes Feedr Norm 1Fam 1Story 5 6 1961 1961 Gable CompShg VinylSd VinylSd None 0 TA TA CBlock TA TA No Rec 468 LwQ 144 270 882 GasA TA Y SBrkr 896 0 0 896 0 0 1 0 2 1 TA 5 Typ 0 noFireplace Attchd 1961 Unf 1 730 TA TA Y 140 0 0 0 120 0 noPool MnPrv none 0 6 2010 WD Normal 105000
526351010 20 RL 81 14267 Pave noAlleyAccess IR1 Lvl AllPub Corner Gtl NAmes Norm Norm 1Fam 1Story 6 6 1958 1958 Hip CompShg Wd Sdng Wd Sdng BrkFace 108 TA TA CBlock TA TA No ALQ 923 Unf 0 406 1329 GasA TA Y SBrkr 1329 0 0 1329 0 0 1 1 3 1 Gd 6 Typ 0 noFireplace Attchd 1958 Unf 1 312 TA TA Y 393 36 0 0 0 0 noPool noFence Gar2 12500 6 2010 WD Normal 172000
526353030 20 RL 93 11160 Pave noAlleyAccess Reg Lvl AllPub Corner Gtl NAmes Norm Norm 1Fam 1Story 7 5 1968 1968 Hip CompShg BrkFace BrkFace None 0 Gd TA CBlock TA TA No ALQ 1065 Unf 0 1045 2110 GasA Ex Y SBrkr 2110 0 0 2110 1 0 2 1 3 1 Ex 8 Typ 2 TA Attchd 1968 Fin 2 522 TA TA Y 0 0 0 0 0 0 noPool noFence none 0 4 2010 WD Normal 244000
527105010 60 RL 74 13830 Pave noAlleyAccess IR1 Lvl AllPub Inside Gtl Gilbert Norm Norm 1Fam 2Story 5 5 1997 1998 Gable CompShg VinylSd VinylSd None 0 TA TA PConc Gd TA No GLQ 791 Unf 0 137 928 GasA Gd Y SBrkr 928 701 0 1629 0 0 2 1 3 1 TA 6 Typ 1 TA Attchd 1997 Fin 2 482 TA TA Y 212 34 0 0 0 0 noPool MnPrv none 0 3 2010 WD Normal 189900
527105030 60 RL 78 9978 Pave noAlleyAccess IR1 Lvl AllPub Inside Gtl Gilbert Norm Norm 1Fam 2Story 6 6 1998 1998 Gable CompShg VinylSd VinylSd BrkFace 20 TA TA PConc TA TA No GLQ 602 Unf 0 324 926 GasA Ex Y SBrkr 926 678 0 1604 0 0 2 1 3 1 Gd 7 Typ 1 Gd Attchd 1998 Fin 2 470 TA TA Y 360 36 0 0 0 0 noPool noFence none 0 6 2010 WD Normal 195500
data(housing, package = "randomForestSRC")
dim(housing)
> [1] 2930   81

Regression example: Iowa housing

The key quantities returned by the package are

o$predicted       --->   inbag estimated conditional mean
o$predicted.oob   --->   OOB estimated conditional mean
o <- rfsrc(SalePrice~., data = housing, nodesize = 1)
> o$predicted[1:5] #  --->   inbag estimated conditional mean
> [1] 12.17378 11.63555 11.99636 12.40886 12.14098 12.16425

o$predicted.oob[1:5] #  --->   OOB estimated conditional mean
> [1] 12.08462 11.70282 11.95179 12.39756 12.13130 12.15017

Regression example: Iowa housing

Tip: omit or impute missing data

The default setting o <- rfsrc(…, na.action = “na.omit”) will provide complete cases in o$yvar and o$xvar
impute() is useful for imputing missing data

PID MS.SubClass MS.Zoning Lot.Frontage Lot.Area Street Alley Lot.Shape Land.Contour Lot.Frontage.1 Garage.Yr.Blt
527402200 20 RL NA 11241 Pave noAlleyAccess IR1 Lvl NA 1970
527402250 20 RL NA 12537 Pave noAlleyAccess IR1 Lvl NA 1971
528240070 60 RL NA 7851 Pave noAlleyAccess Reg Lvl NA 2002
527425090 20 RL 70 10500 Pave noAlleyAccess Reg Lvl 70 NA
534276360 20 RL 77 9320 Pave noAlleyAccess IR1 Lvl 77 NA
909131125 190 RH NA 7082 Pave noAlleyAccess Reg Lvl NA NA
534427010 90 RL 98 13260 Pave noAlleyAccess IR1 Lvl 98 NA
534450180 20 RL 50 7207 Pave noAlleyAccess IR1 Lvl 50 NA
904351040 70 C (all) NA 6449 Pave noAlleyAccess IR1 Lvl NA NA
903200050 30 RL NA 7446 Pave noAlleyAccess Reg Lvl NA NA

Regression example: Iowa housing

Tip: omit or impute missing data

The default setting o <- rfsrc(…, na.action = “na.omit”) will provide complete cases in o$yvar and o$xvar
impute() is used for imputing missing data

PID MS.SubClass MS.Zoning Lot.Frontage Lot.Area Street Alley Lot.Shape Land.Contour Lot.Frontage.1 Garage.Yr.Blt
527402200 20 RL NA 11241 Pave noAlleyAccess IR1 Lvl NA 1970
527402250 20 RL NA 12537 Pave noAlleyAccess IR1 Lvl NA 1971
528240070 60 RL NA 7851 Pave noAlleyAccess Reg Lvl NA 2002
527425090 20 RL 70 10500 Pave noAlleyAccess Reg Lvl 70 NA
534276360 20 RL 77 9320 Pave noAlleyAccess IR1 Lvl 77 NA
909131125 190 RH NA 7082 Pave noAlleyAccess Reg Lvl NA NA
534427010 90 RL 98 13260 Pave noAlleyAccess IR1 Lvl 98 NA
534450180 20 RL 50 7207 Pave noAlleyAccess IR1 Lvl 50 NA
904351040 70 C (all) NA 6449 Pave noAlleyAccess IR1 Lvl NA NA
903200050 30 RL NA 7446 Pave noAlleyAccess Reg Lvl NA NA
nrow(housing)
>  [1] 2930
o <- rfsrc(SalePrice~., data= housing, ntree = 1)
length(o$yvar)
>  [1] 2274
nrow(o$xvar)
>  [1] 2274

Regression example: Iowa housing

Tip: omit or impute missing data

The default setting o <- rfsrc(…, na.action = “na.omit”) will provide complete cases in o$yvar and o$xvar
impute() is used for imputing missing data

PID MS.SubClass MS.Zoning Lot.Frontage Lot.Area Street Alley Lot.Shape Land.Contour Lot.Frontage.1 Garage.Yr.Blt
527402200 20 RL NA 11241 Pave noAlleyAccess IR1 Lvl NA 1970
527402250 20 RL NA 12537 Pave noAlleyAccess IR1 Lvl NA 1971
528240070 60 RL NA 7851 Pave noAlleyAccess Reg Lvl NA 2002
527425090 20 RL 70 10500 Pave noAlleyAccess Reg Lvl 70 NA
534276360 20 RL 77 9320 Pave noAlleyAccess IR1 Lvl 77 NA
909131125 190 RH NA 7082 Pave noAlleyAccess Reg Lvl NA NA
534427010 90 RL 98 13260 Pave noAlleyAccess IR1 Lvl 98 NA
534450180 20 RL 50 7207 Pave noAlleyAccess IR1 Lvl 50 NA
904351040 70 C (all) NA 6449 Pave noAlleyAccess IR1 Lvl NA NA
903200050 30 RL NA 7446 Pave noAlleyAccess Reg Lvl NA NA
nrow(housing)
>  [1] 2930
# Use supervised OTF imputation
housing.im <- impute(SalePrice~., data = housing)
nrow(housing.im)
>  [1] 2930
housing[c(12,15,23,24,25,56,28,120,2846,126,130,214,2671),c(1:9,4,60)]
>             PID MS.SubClass MS.Zoning Lot.Frontage Lot.Area Street         Alley Lot.Shape Land.Contour Lot.Frontage.1 Garage.Yr.Blt
>  12   527165230          20        RL           NA     7980   Pave noAlleyAccess       IR1          Lvl             NA          1992
>  15   527182190         120        RL           NA     6820   Pave noAlleyAccess       IR1          Lvl             NA          1985
>  23   527368020          60        FV           NA     7500   Pave noAlleyAccess       Reg          Lvl             NA          2000
>  24   527402200          20        RL           NA    11241   Pave noAlleyAccess       IR1          Lvl             NA          1970
>  25   527402250          20        RL           NA    12537   Pave noAlleyAccess       IR1          Lvl             NA          1971
>  56   528240070          60        RL           NA     7851   Pave noAlleyAccess       Reg          Lvl             NA          2002
>  28   527425090          20        RL           70    10500   Pave noAlleyAccess       Reg          Lvl             70            NA
>  120  534276360          20        RL           77     9320   Pave noAlleyAccess       IR1          Lvl             77            NA
>  2846 909131125         190        RH           NA     7082   Pave noAlleyAccess       Reg          Lvl             NA            NA
>  126  534427010          90        RL           98    13260   Pave noAlleyAccess       IR1          Lvl             98            NA
>  130  534450180          20        RL           50     7207   Pave noAlleyAccess       IR1          Lvl             50            NA
>  214  904351040          70   C (all)           NA     6449   Pave noAlleyAccess       IR1          Lvl             NA            NA
>  2671 903200050          30        RL           NA     7446   Pave noAlleyAccess       Reg          Lvl             NA            NA
nrow(housing)
>  [1] 2930
# do quick and dirty imputation
housing.im <- impute(SalePrice~., data = housing)
nrow(housing.im)
>  [1] 2930
housing.im[c(12,15,23,24,25,56,28,120,2846,126,130,214,2671),c(1:9,4,60)]
>             PID MS.SubClass MS.Zoning Lot.Frontage Lot.Area Street         Alley Lot.Shape Land.Contour Lot.Frontage.1 Garage.Yr.Blt
>  12   527165230          20        RL     68.85565     7980   Pave noAlleyAccess       IR1          Lvl       68.85565      1992.000
>  15   527182190         120        RL     68.56751     6820   Pave noAlleyAccess       IR1          Lvl       68.56751      1985.000
>  23   527368020          60        FV     66.21796     7500   Pave noAlleyAccess       Reg          Lvl       66.21796      2000.000
>  24   527402200          20        RL     74.53002    11241   Pave noAlleyAccess       IR1          Lvl       74.53002      1970.000
>  25   527402250          20        RL     80.12155    12537   Pave noAlleyAccess       IR1          Lvl       80.12155      1971.000
>  56   528240070          60        RL     71.88750     7851   Pave noAlleyAccess       Reg          Lvl       71.88750      2002.000
>  28   527425090          20        RL     70.00000    10500   Pave noAlleyAccess       Reg          Lvl       70.00000      1965.035
>  120  534276360          20        RL     77.00000     9320   Pave noAlleyAccess       IR1          Lvl       77.00000      1961.286
>  2846 909131125         190        RH     63.99655     7082   Pave noAlleyAccess       Reg          Lvl       63.99655      1946.405
>  126  534427010          90        RL     98.00000    13260   Pave noAlleyAccess       IR1          Lvl       98.00000      1968.485
>  130  534450180          20        RL     50.00000     7207   Pave noAlleyAccess       IR1          Lvl       50.00000      1962.214
>  214  904351040          70   C (all)     64.52222     6449   Pave noAlleyAccess       IR1          Lvl       64.52222      1942.500
>  2671 903200050          30        RL     66.49275     7446   Pave noAlleyAccess       Reg          Lvl       66.49275      1952.198

Regression example: Iowa housing

Tip: model with missing data

rfsrc(…, na.action = “na.impute”) implements on-the-fly imputation

PID MS.SubClass MS.Zoning Lot.Frontage Lot.Area Street Alley Lot.Shape Land.Contour Lot.Frontage.1 Garage.Yr.Blt
527402200 20 RL NA 11241 Pave noAlleyAccess IR1 Lvl NA 1970
527402250 20 RL NA 12537 Pave noAlleyAccess IR1 Lvl NA 1971
528240070 60 RL NA 7851 Pave noAlleyAccess Reg Lvl NA 2002
527425090 20 RL 70 10500 Pave noAlleyAccess Reg Lvl 70 NA
534276360 20 RL 77 9320 Pave noAlleyAccess IR1 Lvl 77 NA
909131125 190 RH NA 7082 Pave noAlleyAccess Reg Lvl NA NA
534427010 90 RL 98 13260 Pave noAlleyAccess IR1 Lvl 98 NA
534450180 20 RL 50 7207 Pave noAlleyAccess IR1 Lvl 50 NA
904351040 70 C (all) NA 6449 Pave noAlleyAccess IR1 Lvl NA NA
903200050 30 RL NA 7446 Pave noAlleyAccess Reg Lvl NA NA
o <- rfsrc(SalePrice~., data = housing)
o
                         Sample size: 2274
                     Number of trees: 500
           Forest terminal node size: 5
       Average no. of terminal nodes: 310.83
No. of variables tried at each split: 27
              Total no. of variables: 80
       Resampling used to grow trees: swor
    Resample size used to grow trees: 1437
                            Analysis: RF-R
                              Family: regr
                      Splitting rule: mse *random*
       Number of random split points: 10
                     (OOB) R squared: 0.90907743
   (OOB) Requested performance error: 631482361.907825
o <- rfsrc(SalePrice~., data = housing, na.action = "na.impute")
o
                         Sample size: 2930
                    Was data imputed: yes
                     Number of trees: 500
           Forest terminal node size: 5
       Average no. of terminal nodes: 402.424
No. of variables tried at each split: 27
              Total no. of variables: 80
       Resampling used to grow trees: swor
    Resample size used to grow trees: 1852
                            Analysis: RF-R
                              Family: regr
                      Splitting rule: mse *random*
       Number of random split points: 10
                     (OOB) R squared: 0.90785994
   (OOB) Requested performance error: 588027121.705363

Regression example: Iowa housing

Transform the outcome

Tip

Monotonic transformation on the outcome won’t substantially change the structure of random forest due to its robustness. However, it may be useful for scaling the mean squared error

o <- rfsrc(SalePrice~., data= housing)
o
>                          Sample size: 2274
>                      Number of trees: 500
>            Forest terminal node size: 5
>        Average no. of terminal nodes: 310.594
> No. of variables tried at each split: 27
>               Total no. of variables: 80
>        Resampling used to grow trees: swor
>     Resample size used to grow trees: 1437
>                             Analysis: RF-R
>                               Family: regr
>                       Splitting rule: mse *random*
>        Number of random split points: 10
>                      (OOB) R squared: 0.90969641
>    (OOB) Requested performance error: 627183369.648676
> housing$SalePrice <- log(housing$SalePrice)
> o <- rfsrc(SalePrice~., data= housing)
> o
                         Sample size: 2274
                     Number of trees: 500
           Forest terminal node size: 5
       Average no. of terminal nodes: 310.61
No. of variables tried at each split: 27
              Total no. of variables: 80
       Resampling used to grow trees: swor
    Resample size used to grow trees: 1437
                            Analysis: RF-R
                              Family: regr
                      Splitting rule: mse *random*
       Number of random split points: 10
                     (OOB) R squared: 0.89837879
   (OOB) Requested performance error: 0.01688687

Regression example: Iowa housing

Tune nodesize

rfsrc(

formula, data, ntree = 500, mtry = NULL, ytry = NULL, nodesize = NULL, …)

nodesize sets the minumum size of terminal, default values are:

  15 for survival
  15 for competing risk
  5 for regression
  1 for classification
  3 for mixed outcomes
  3 for unsupervised

We can use tune.nodesize()

o <- tune.nodesize(SalePrice~., housing)
o$nsize.opt
> [1] 1
> nodesize =  1    error = 10.75%
> nodesize =  2    error = 11.36%
> nodesize =  3    error = 11.55%
> nodesize =  4    error = 11.3%
> nodesize =  5    error = 11.72%
> nodesize =  6    error = 12.2%
> nodesize =  7    error = 12.75%
> nodesize =  8    error = 12.54%
> nodesize =  9    error = 13.2%
> nodesize =  10    error = 13.98%
> nodesize =  15    error = 14.88%
> nodesize =  20    error = 17.14%
> nodesize =  25    error = 19.26%
> nodesize =  30    error = 20.92%
> nodesize =  35    error = 21.64%
> nodesize =  40    error = 23.86%
> nodesize =  45    error = 24.64%
> nodesize =  50    error = 25.4%
> nodesize =  55    error = 26.87%
> optimal nodesize: 1

Quantile regression


Family Example Grow Call with Formula Specification
Regression
Quantile Regression 		rfsrc(Ozone~., data = airquality)
quantreg(mpg~., data = mtcars)
Classification
Imbalanced Two-Class		 rfsrc(Species~., data = iris)
imbalanced(status~., data = breast)
Survival rfsrc(Surv(time, status)~., data = veteran)
Competing Risk rfsrc(Surv(time, status)~., data = wihs)
Multivariate Regression
Multivariate Mixed Regression
Multivariate Quantile Regression
Multivariate Mixed Quantile Regression		 rfsrc(Multivar(mpg, cyl)~., data = mtcars)
rfsrc(cbind(Species,Sepal.Length)~.,data=iris)
quantreg(cbind(mpg, cyl)~., data = mtcars)
quantreg(cbind(Species,Sepal.Length)~.,data=iris)
Unsupervised
sidClustering
Breiman (Shi-Horvath)		 rfsrc(data = mtcars)
sidClustering(data = mtcars)
sidClustering(data = mtcars, method = "sh")

Quantile regression

Quantile regression estimates the conditional distribution function (CDF) \[ F(y|\mathbf{ X}=\mathbf{ x})=P\{Y\le y|\mathbf{ X}=\mathbf{ x}\} \]

The empirical risk functional for a quantile \(0<\alpha<1\) is \[ R_n(F)=\frac{1}{n}\sum_{i=1}^n L_{\alpha}(Y_i, F(\mathbf{ x}_i)) \] where \(L_{\alpha}(Y, u)=\phi_{\alpha}(Y-u)\) is the loss function (pinball loss) and \[ \phi_{\alpha}(u)=u(\alpha-1_{\{u<0\}}) \] is the check-loss function

Quantile regression

In regression, the tree node estimator is the sample average \[ E(Y|\mathbf{ X}\in t) = \overline{Y}_{t} \] In quantile regression it is the CDF \[ P\{Y\le y|\mathbf{ X}\in t\} = \frac{1}{n}\sum_{i\in t} 1_{\{Y_i\le y\}} \]

Split rules for regression


Family splitrule
Regression
Quantile Regression		 mse
la.quantile.regr, quantile.regr,mse
Classification
Imbalanced Two-Class		 gini, auc, entropy
gini, auc, entropy
Survival logrank, bs.gradient, logrankscore
Competing Risk logrankCR, logrank
Multivariate Regression
Multivariate Classification
Multivariate Mixed Regression
Multivariate Quantile Regression
Multivariate Mixed Quantile Regression		 mv.mse, mahalanobis
mv.gini
mv.mix
mv.mse
mv.mix
Unsupervised
sidClustering
Breiman (Shi-Horvath)		 unsupv
\(\{\)mv.mse, mv.gini, mv.mix\(\}\), mahalanobis
gini, auc, entropy

Quantile regression splitting rule

  • quantile.regr is the quantile splitting rule using quantile loss (pinball loss). It requires specifying the target quantiles which by default are the percentiles 1%, 2%, \(\ldots\), 99%

  • la.quantile.regr refers to local adaptive quantile regression splitting (the default action for quantreg) under default percentiles 1%, 2%, \(\ldots\), 99%

Key quantities

The key quantities returned by the package are

o$quantreg  ---> quantiles for the CDF (extracted by helper function)

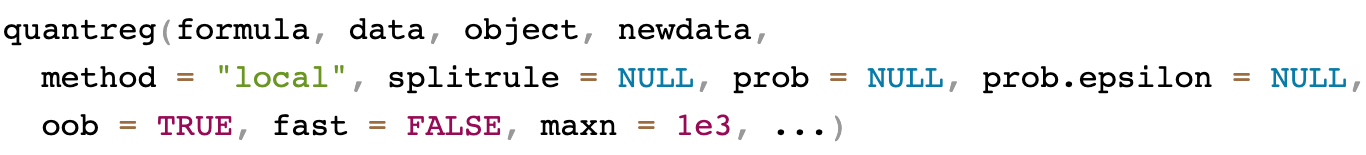

General call to quantreg

Regression example: Iowa housing

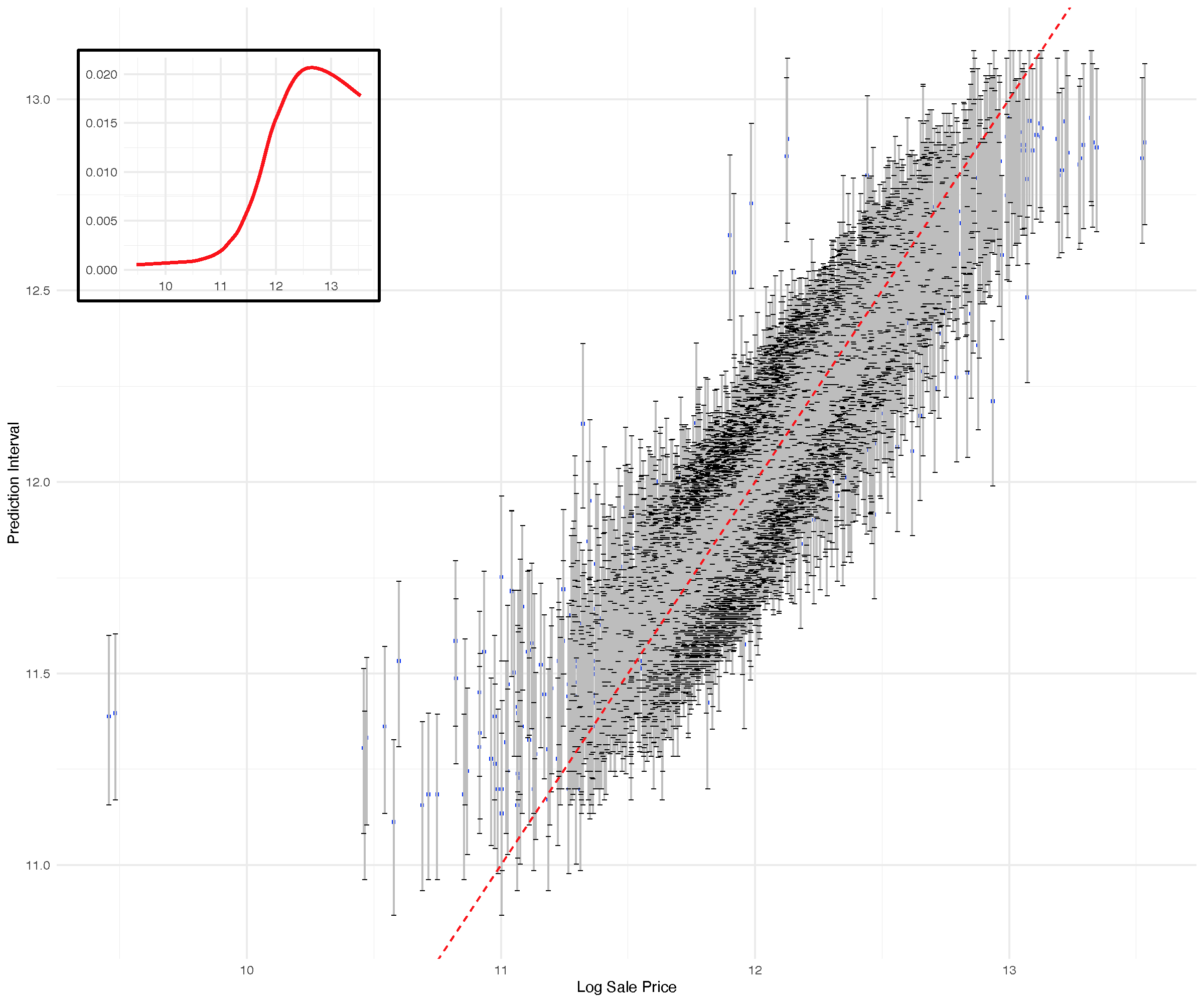

Quantile regression

o <- quantreg(SalePrice ~ ., housing, splitrule = "mse", ntree = 250)
o <- quantreg(SalePrice ~ ., housing, splitrule = "quantile.regr", ntree = 250)
o <- quantreg(SalePrice ~ ., housing, splitrule = "la.quantile.regr", ntree = 250) # (default)
> o
                         Sample size: 2274
                     Number of trees: 250
           Forest terminal node size: 5
       Average no. of terminal nodes: 263.86
No. of variables tried at each split: 27
              Total no. of variables: 80
       Resampling used to grow trees: swor
    Resample size used to grow trees: 1437
                            Analysis: RF-R
                              Family: regr
                      Splitting rule: la.quantile.regr *random*
       Number of random split points: 10
                     (OOB) R squared: 0.85752024
   (OOB) Requested performance error: 0.02367652
plot.quantreg(o)

Regression example: Iowa housing

The key quantities returned by the package are

o$quantreg  ---> quantiles for the CDF (extracted by helper function)
o <- quantreg(SalePrice ~ ., housing)
names(o$quantreg)
> [1] "quantiles" "prob"      "cdf"       "density"   "yunq"

head(o$quantreg$yunq)
> [1]  9.456341  9.480368 10.463103 10.471950 10.596635 10.714418
head(o$quantreg$prob)
> [1] 0.01 0.02 0.03 0.04 0.05 0.06
head(o$quantreg$cdf[ ,1:5])
>      [,1] [,2]         [,3]         [,4]         [,5]
> [1,]    0    0 0.0008795075 0.0008795075 0.0008795075
> [2,]    0    0 0.0008795075 0.0008795075 0.0008795075
> [3,]    0    0 0.0008795075 0.0008795075 0.0008795075
> [4,]    0    0 0.0008795075 0.0008795075 0.0008795075
> [5,]    0    0 0.0008795075 0.0008795075 0.0008795075
> [6,]    0    0 0.0008795075 0.0008795075 0.0008795075
head(o$quantreg$density[ ,1:5])
>      [,1] [,2]         [,3] [,4] [,5]
> [1,]    0    0 0.0008795075    0    0
> [2,]    0    0 0.0008795075    0    0
> [3,]    0    0 0.0008795075    0    0
> [4,]    0    0 0.0008795075    0    0
> [5,]    0    0 0.0008795075    0    0
> [6,]    0    0 0.0008795075    0    0
head(o$quantreg$quantiles[ ,1:5])
>          [,1]     [,2]     [,3]     [,4]     [,5]
> [1,] 11.53273 11.68658 11.74543 11.77913 11.80560
> [2,] 11.24505 11.40199 11.46163 11.49883 11.52288
> [3,] 11.42954 11.58058 11.64151 11.67844 11.70355
> [4,] 11.81303 11.96285 12.01974 12.05815 12.08108
> [5,] 11.64395 11.79434 11.85296 11.88793 11.91505
> [6,] 11.68856 11.83501 11.89478 11.93164 11.95761

Regression example: Iowa housing

## (A) extract 25,50,75 quantiles
  quant.dat <- get.quantile(o, c(.25, .50, .75))
  head(quant.dat)
>          q.25     q.50     q.75
> [1,] 12.01673 12.07254 12.13081
> [2,] 11.62536 11.67844 11.73767
> [3,] 11.89341 11.94795 12.00457
> [4,] 12.35017 12.40492 12.46071
> [5,] 12.04614 12.10071 12.15767
> [6,] 12.08954 12.14420 12.20106

## (B) values expected under normality
  quant.stat <- get.quantile.stat(o)
  c.mean <- quant.stat$mean
  c.std <- quant.stat$std
  q.25.est <- c.mean + qnorm(.25) * c.std
  q.75.est <- c.mean + qnorm(.75) * c.std

## compare (A) and (B)
  print(head(data.frame(quant.dat[, -2],  q.25.est, q.75.est)))
>     q.25   q.75 q.25.est q.75.est
> 1 12.01673 12.13081 11.98342 12.15846
> 2 11.62536 11.73767 11.59368 11.76268
> 3 11.89341 12.00457 11.85888 12.03187
> 4 12.35017 12.46071 12.31451 12.49045
> 5 12.04614 12.15767 12.01076 12.18538
> 6 12.08954 12.20106 12.05462 12.22996

Regression example: Iowa housing

The run.rfsrc function for an overview

Runs rfsrc on a user’s specified data and performs a detailed analysis including tuning the forests and plotting various quantities such as performance metrics and variable importance. Applies to regression, classification, survival, competing risk and multivariate families

library(devtools)
devtools::install_github("kogalur/randomForestSRC.run")

Regression example: Iowa housing

library(randomForestSRC.run)

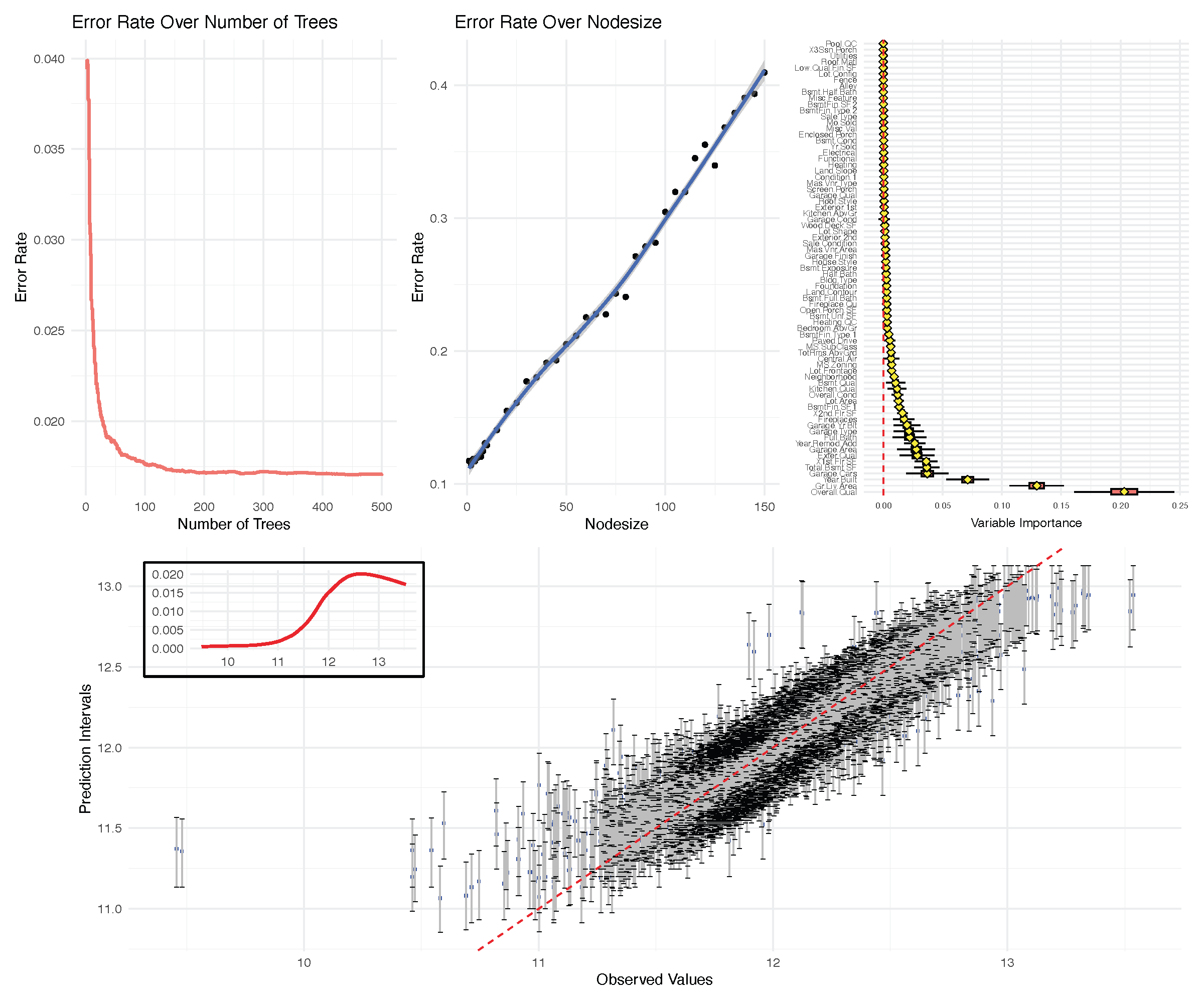

run.rfsrc(SalePrice ~ ., housing, ntree = 500)

Classification


Family Example Grow Call with Formula Specification
Regression
Quantile Regression 		rfsrc(Ozone~., data = airquality)
quantreg(mpg~., data = mtcars)
Classification
Imbalanced Two-Class		 rfsrc(Species~., data = iris)
imbalanced(status~., data = breast)
Survival rfsrc(Surv(time, status)~., data = veteran)
Competing Risk rfsrc(Surv(time, status)~., data = wihs)
Multivariate Regression
Multivariate Mixed Regression
Multivariate Quantile Regression
Multivariate Mixed Quantile Regression		 rfsrc(Multivar(mpg, cyl)~., data = mtcars)
rfsrc(cbind(Species,Sepal.Length)~.,data=iris)
quantreg(cbind(mpg, cyl)~., data = mtcars)
quantreg(cbind(Species,Sepal.Length)~.,data=iris)
Unsupervised
sidClustering
Breiman (Shi-Horvath)		 rfsrc(data = mtcars)
sidClustering(data = mtcars)
sidClustering(data = mtcars, method = "sh")

Classification

The classification-regression goal is to estimate \[ F_j(\mathbf{x})=P\{Y=j|\mathbf{X}=\mathbf{x}\} \hskip10pt \text{for } j=1,\ldots,J \] by minimizing the empirical risk functional, \(F=(F_1,\ldots,F_J)\), \[ R_n(F)=\frac{1}{n}\sum_{i=1}^n L(Y_i, F(\mathbf{x}_i)) \] using loss functions like Gini impurity, entropy and the Brier score

Classification

The classification goal is to classify cases, typically performed using the Bayes rule (maximal probability) \[ \delta(\mathbf{x}) = j, \hskip10pt \text{where } F_j(\mathbf{x})\ge F_{j'},(\mathbf{x})\hskip10pt j'=1,\ldots,J \]

The tree node estimator equals the relative frequencies \[ P\{Y=j|\mathbf{X}\in t\} = \dfrac{\text{number of cases in $t$ that are class label $j$}}{\text{number of cases in $t$}} \]

Key quantities

The key quantities returned by the package are

o$predicted     --->   inbag estimated probabilities
o$predicted.oob --->   OOB estimated probabilities

o$class         --->   inbag class predictions
o$class.oob     --->   OOB class predictions

Classification example: Glioma

Subset of the data used in Ceccarelli et al. (2016) for molecular profiling of adult diffuse gliomas. It contains 1206 probes from 880 tissues, clinical data and other molecular data. The outcome has class labels: Classic-like, Codel, G-CIMP-high, G-CIMP-low, LGm6-GBM, Mesenchymal-like and PA-like [6]

y cg23970089 cg25176823 cg24576735 Chr19.20co.gain TERT.promoter.status SNP6 U133a grade age gender
Mesenchymal-like 0.36518600 0.3244530 0.03255164 No chr 19/20 gain Mutant Yes Yes G4 44 female
Mesenchymal-like 0.60246131 0.3626941 0.02215452 No chr 19/20 gain Mutant Yes Yes G4 50 male
Mesenchymal-like 0.44011951 0.3679728 0.03369096 No chr 19/20 gain Mutant Yes No G4 56 female
Classic-like 0.06834791 0.3974054 0.03623296 No chr 19/20 gain Mutant Yes Yes G4 40 female
Classic-like 0.19843219 0.2736760 0.04060163 No chr 19/20 gain Mutant Yes Yes G4 61 female
# install.packages("devtools") # if you have not installed "devtools" package
devtools::install_github("kogalur/varPro")
data(glioma, package = "varPro")
dim(glioma)
> [1]  880 1242

Classification example: Glioma

o <- rfsrc(y~., data = glioma)
o
                         Sample size: 878
           Frequency of class labels: 148, 174, 249, 25, 41, 215, 26
                     Number of trees: 500
           Forest terminal node size: 1
       Average no. of terminal nodes: 74.302
No. of variables tried at each split: 36
              Total no. of variables: 1241
       Resampling used to grow trees: swor
    Resample size used to grow trees: 555
                            Analysis: RF-C
                              Family: class
                      Splitting rule: gini *random*
       Number of random split points: 10
                   (OOB) Brier score: 0.02333115
        (OOB) Normalized Brier score: 0.19053769
                           (OOB) AUC: 0.99304797
                      (OOB) Log-loss: 0.34115074
   (OOB) Requested performance error: 0.07061503, 0.06756757, 0.01149425, 0.00803213, 0.52, 0.53658537, 0.04651163, 0.11538462

Confusion matrix:

                  predicted
  observed         Classic-like Codel G-CIMP-high G-CIMP-low LGm6-GBM Mesenchymal-like PA-like class.error
  Classic-like              138     0           0          0        0               10       0      0.0676
  Codel                       0   172           2          0        0                0       0      0.0115
  G-CIMP-high                 0     2         247          0        0                0       0      0.0080
  G-CIMP-low                  0     0          13         12        0                0       0      0.5200
  LGm6-GBM                    0     0           1          0       19               21       0      0.5366
  Mesenchymal-like           11     0           0          0        0              204       0      0.0512
  PA-like                     0     0           0          0        0                3      23      0.1154

      (OOB) Misclassification rate: 0.07175399

Tip

rfsrc recognize classification problem automatically when the outcome is a factor

Key quantities

The key quantities returned by the package are

o$predicted     --->   inbag estimated probabilities
o$predicted.oob --->   OOB estimated probabilities

o$class         --->   inbag class predictions
o$class.oob     --->   OOB class predictions
o$predicted[1:5,]     # --->   inbag estimated probabilities
>      Classic-like Codel G-CIMP-high G-CIMP-low LGm6-GBM Mesenchymal-like PA-like
> [1,]        0.006 0.002       0.000      0.004    0.084            0.892   0.012
> [2,]        0.136 0.008       0.000      0.004    0.014            0.832   0.006
> [3,]        0.064 0.004       0.008      0.010    0.018            0.892   0.004
> [4,]        0.928 0.008       0.004      0.004    0.002            0.054   0.000
> [5,]        0.936 0.000       0.000      0.002    0.000            0.062   0.000
o$predicted.oob[1:5,] # --->   OOB estimated probabilities
>      Classic-like       Codel G-CIMP-high  G-CIMP-low    LGm6-GBM Mesenchymal-like    PA-like
> [1,]   0.01840491 0.006134969  0.00000000 0.012269939 0.257668712        0.6687117 0.03680982
> [2,]   0.38857143 0.022857143  0.00000000 0.011428571 0.040000000        0.5200000 0.01714286
> [3,]   0.17391304 0.010869565  0.02173913 0.027173913 0.048913043        0.7065217 0.01086957
> [4,]   0.81443299 0.020618557  0.01030928 0.010309278 0.005154639        0.1391753 0.00000000
> [5,]   0.82222222 0.000000000  0.00000000 0.005555556 0.000000000        0.1722222 0.00000000

o$class[1:5]       #  --->   inbag class predictions
> [1] Mesenchymal-like Mesenchymal-like Mesenchymal-like Classic-like     Classic-like

o$class.oob[1:5]   #  --->   OOB class predictions
> [1] Mesenchymal-like Mesenchymal-like Mesenchymal-like Classic-like     Classic-like

Classification example: Glioma

Split rules

Family splitrule
Regression
Quantile Regression		 mse
la.quantile.regr, quantile.regr, mse
Classification
Imbalanced Two-Class		 gini, auc, entropy
gini, auc, entropy
Survival logrank, bs.gradient, logrankscore
Competing Risk logrankCR, logrank
Multivariate Regression
Multivariate Classification
Multivariate Mixed Regression
Multivariate Quantile Regression
Multivariate Mixed Quantile Regression		 mv.mse, mahalanobis
mv.gini
mv.mix
mv.mse
mv.mix
Unsupervised
sidClustering
Breiman (Shi-Horvath)		 unsupv
\(\{\)mv.mse, mv.gini, mv.mix\(\}\), mahalanobis
gini, auc, entropy

Learn more [7]: https://www.randomforestsrc.org/articles/aucsplit.html

Classification example: Glioma

Split rules: Gini index splitting (default)

o <- rfsrc(y~., data = glioma,
           splitrule="gini") ## default splitrule as in the previous slide
o
                         Sample size: 878
           Frequency of class labels: 148, 174, 249, 25, 41, 215, 26
                     Number of trees: 500
           Forest terminal node size: 1
       Average no. of terminal nodes: 74.302
No. of variables tried at each split: 36
              Total no. of variables: 1241
       Resampling used to grow trees: swor
    Resample size used to grow trees: 555
                            Analysis: RF-C
                              Family: class
                      Splitting rule: gini *random*
       Number of random split points: 10
                   (OOB) Brier score: 0.02333115
        (OOB) Normalized Brier score: 0.19053769
                           (OOB) AUC: 0.99304797
                      (OOB) Log-loss: 0.34115074
   (OOB) Requested performance error: 0.07061503, 0.06756757, 0.01149425, 0.00803213, 0.52, 0.53658537, 0.04651163, 0.11538462

See Chapter 4.3 in Breiman et al. 1984 [4]

Classification example: Glioma

Split rules: AUC (area under the ROC curve)

o <- rfsrc(y~., data = glioma,
           splitrule="auc")
o
                         Sample size: 878
           Frequency of class labels: 148, 174, 249, 25, 41, 215, 26
                     Number of trees: 500
           Forest terminal node size: 1
       Average no. of terminal nodes: 434.522
No. of variables tried at each split: 36
              Total no. of variables: 1241
       Resampling used to grow trees: swor
    Resample size used to grow trees: 555
                            Analysis: RF-C
                              Family: class
                      Splitting rule: auc *random*
       Number of random split points: 10
                   (OOB) Brier score: 0.04799401
        (OOB) Normalized Brier score: 0.39195105
                           (OOB) AUC: 0.97510083
                      (OOB) Log-loss: 0.62743109
   (OOB) Requested performance error: 0.16514806, 0.25675676, 0.09770115, 0.01606426, 0.84, 0.97560976, 0.04651163, 0.57692308

Tip

AUC splitting is appropriate for imbalanced data

Classification example: Glioma

Split rules: entropy splitting

o <- rfsrc(y~., data = glioma,
           splitrule="entropy")
o
                         Sample size: 878
           Frequency of class labels: 148, 174, 249, 25, 41, 215, 26
                     Number of trees: 500
           Forest terminal node size: 1
       Average no. of terminal nodes: 287.266
No. of variables tried at each split: 36
              Total no. of variables: 1241
       Resampling used to grow trees: swor
    Resample size used to grow trees: 555
                            Analysis: RF-C
                              Family: class
                      Splitting rule: entropy *random*
       Number of random split points: 10
                   (OOB) Brier score: 0.04504941
        (OOB) Normalized Brier score: 0.36790354
                           (OOB) AUC: 0.96636193
                      (OOB) Log-loss: 0.64571496
   (OOB) Requested performance error: 0.15148064, 0.16216216, 0.04022989, 0.01204819, 0.72, 1, 0.10232558, 0.69230769

See Chapters 2.5 and 4.3 in Breiman et al. 1984 [4]

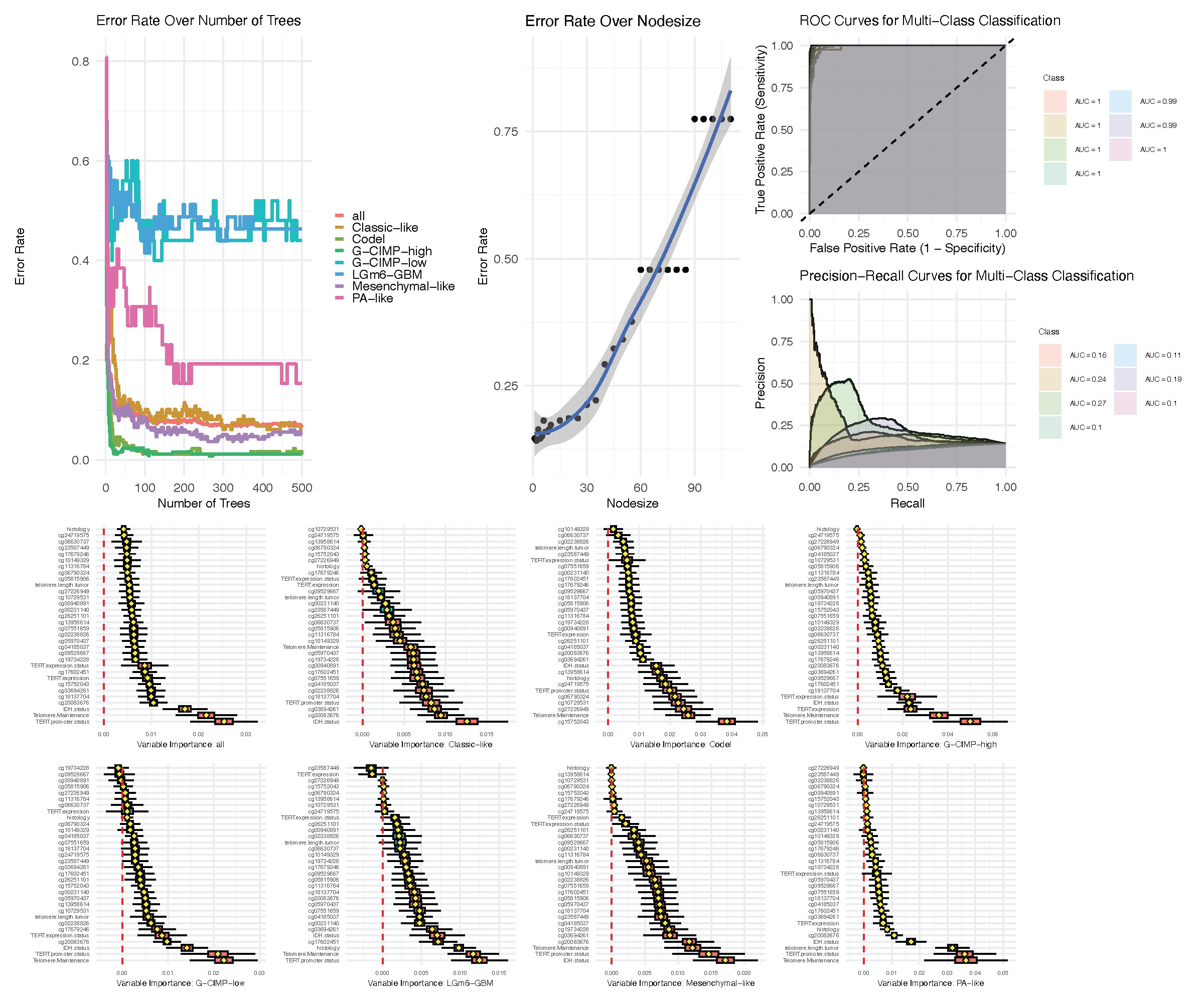

The run.rfsrc function for an overview

run.rfsrc(y~., data = glioma)

Survival

Family Example Grow Call with Formula Specification
Regression
Quantile Regression 		rfsrc(Ozone~., data = airquality)
quantreg(mpg~., data = mtcars)
Classification
Imbalanced Two-Class		 rfsrc(Species~., data = iris)
imbalanced(status~., data = breast)
Survival rfsrc(Surv(time, status)~., data = veteran)
Competing Risk rfsrc(Surv(time, status)~., data = wihs)
Multivariate Regression
Multivariate Mixed Regression
Multivariate Quantile Regression
Multivariate Mixed Quantile Regression		 rfsrc(Multivar(mpg, cyl)~., data = mtcars)
rfsrc(cbind(Species,Sepal.Length)~.,data=iris)
quantreg(cbind(mpg, cyl)~., data = mtcars)
quantreg(cbind(Species,Sepal.Length)~.,data=iris)
Unsupervised
sidClustering
Breiman (Shi-Horvath)		 rfsrc(data = mtcars)
sidClustering(data = mtcars)
sidClustering(data = mtcars, method = "sh")

Learn more [8]: https://www.randomforestsrc.org/articles/survival.html

Survival

In survival one of the primary goals is estimating the survival function \[ S(t|\mathbf{X}=\mathbf{x}) = P\{T^o> t|\mathbf{X}=\mathbf{x}\} \] where \(T^o\) is the survival time

Random survival forests [9] uses the KM (Kaplan-Meier) estimator with the general estimation strategy (product limit estimator) \[ S(t) = S(t_1) \times S(t_2|t_1) \times \cdots \times S(t_M|t_{M-1}) \] with \[ S(t_j|t_{j-1}) = \frac{\text{number surviving beyond $t=t_j$}}{\text{number surviving beyond $t>t_{j-1}$}}. \]

Survival

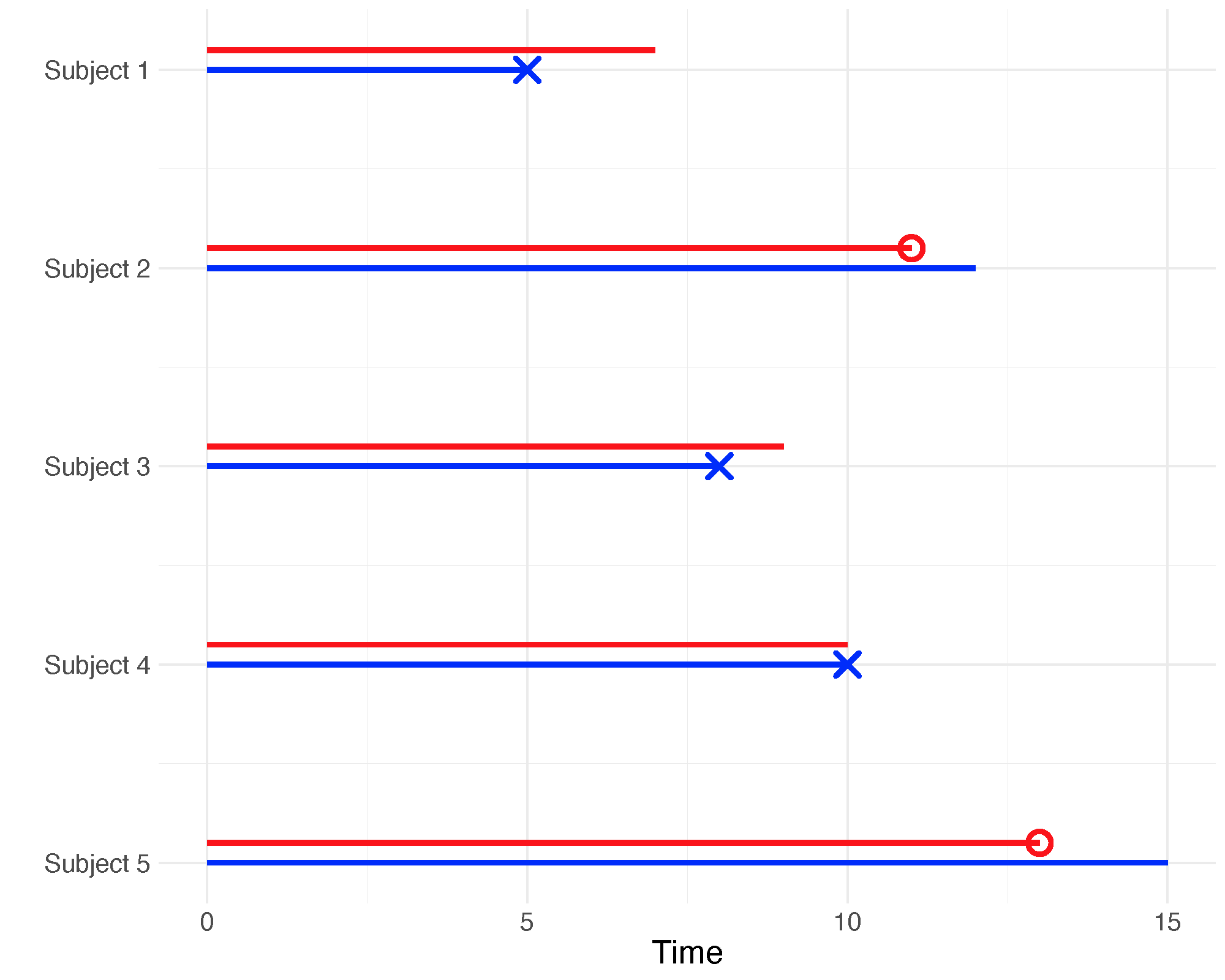

This deals with generalized Type-I censoring where patients enter a study at different times and length of follow-up time varies for each patient and where time of event is unobserved for some patients due to the study ending

Survival

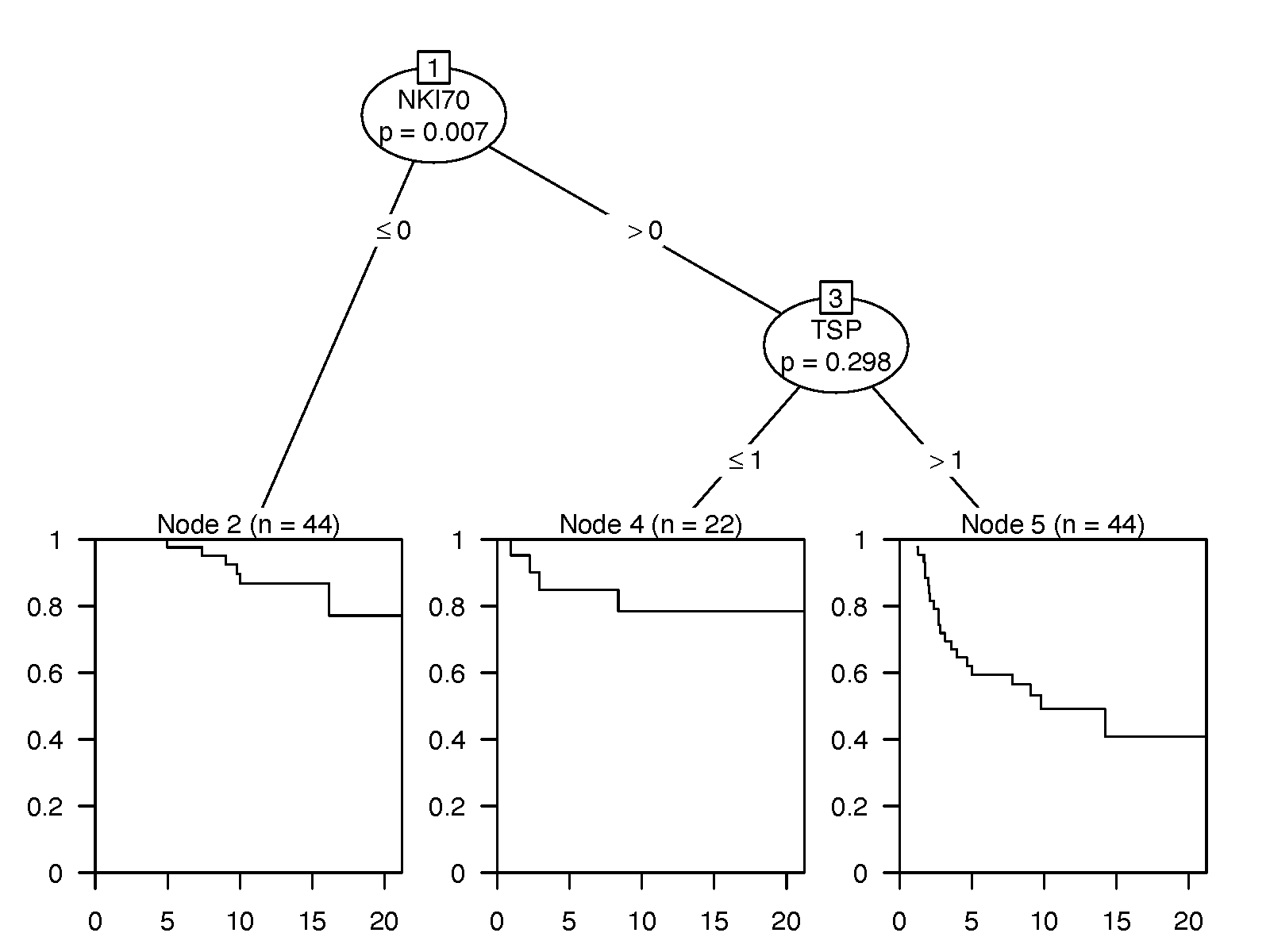

The tree node estimator is the KM estimator. Tree nodes are split using the log-rank statistic

Key quantities

The key quantities returned by the package are

o$time.interest --->   event times (everything keys off this)

o$predicted     --->   inbag estimated mortality
o$predicted.oob --->   OOB estimated mortality

o$survival      --->   inbag survival estimator for each case
o$survival.oob  --->   OOB survival estimator for each case

o$chf          --->    inbag CHF estimator for each case
o$chf.oob      --->    OOB CHF estimator for each case

Survival example: PBC Mayo Clinic

This data is from the Mayo Clinic trial in Primary Biliary Cirrhosis (PBC) conducted between 1974 and 1984. Among the total 424 PBC patients, the first 312 cases participated in a randomized placebo controlled trial of the drug D-penicillamine with largely complete data. The additional 112 cases did not participate in the clinical trial, but consented to have basic measurements and to be followed for survival [10]

id time status trt age sex ascites hepato spiders edema bili chol albumin copper alk.phos ast trig platelet protime stage
1 400 2 1 58.76523 f 1 1 1 1.0 14.5 261 2.60 156 1718.0 137.95 172 190 12.2 4
2 4500 0 1 56.44627 f 0 1 1 0.0 1.1 302 4.14 54 7394.8 113.52 88 221 10.6 3
3 1012 2 1 70.07255 m 0 0 0 0.5 1.4 176 3.48 210 516.0 96.10 55 151 12.0 4
4 1925 2 1 54.74059 f 0 1 1 0.5 1.8 244 2.54 64 6121.8 60.63 92 183 10.3 4
5 1504 1 2 38.10541 f 0 1 1 0.0 3.4 279 3.53 143 671.0 113.15 72 136 10.9 3
6 2503 2 2 66.25873 f 0 1 0 0.0 0.8 248 3.98 50 944.0 93.00 63 NA 11.0 3
data(pbc, package = "survival")
dim(pbc)
> [1] 418  20

Survival example: PBC Mayo Clinic

pbc$id <- NULL ## remove the ID
## keep the original competing risk framework for later
## status at endpoint, 0/1/2 for censored, transplant, dead
pbc.cr <- pbc

## convert to right-censoring with death as the event
pbc$status[pbc$status > 0] <- 1
o <- rfsrc(Surv(time, status) ~ ., data = pbc)
o
                         Sample size: 276
                    Number of deaths: 129
                     Number of trees: 500
           Forest terminal node size: 15
       Average no. of terminal nodes: 14.326
No. of variables tried at each split: 5
              Total no. of variables: 17
       Resampling used to grow trees: swor
    Resample size used to grow trees: 174
                            Analysis: RSF
                              Family: surv
                      Splitting rule: logrank *random*
       Number of random split points: 10
                          (OOB) CRPS: 553.15107271
                   (OOB) stand. CRPS: 0.13198546
   (OOB) Requested performance error: 0.18814768

Key quantities

o$time.interest --->   event times (everything keys off this)
o$time.interest[1:5]
> [1]  41  51  71  77 110


o$predicted     --->   inbag estimated mortality
o$predicted.oob --->   OOB estimated mortality
o$predicted[1:5]
> [1] 200.83450  17.07501  76.31131  57.77577  79.27206

o$predicted.oob[1:5]
> [1] 190.04590  28.05044  66.25447  55.03181  72.55308


o$survival      --->   inbag survival estimator for each case
o$survival.oob  --->   OOB survival estimator for each case
dim(o$yvar) ## sample size (complete cases) n = 276
> [1] 276   2
length(o$time.interest)
> [1] 127
dim(o$survival)      # --->   inbag survival estimator for each case
> [1] 276 127
dim(o$survival.oob)  # --->   OOB survival estimator for each case
> [1] 276 127

Key quantities

o$survival      --->   inbag survival estimator for each case
o$survival.oob  --->   OOB survival estimator for each case
dim(o$survival)      # --->   inbag survival estimator for each case
> [1] 276 127
dim(o$survival.oob)  # --->   OOB survival estimator for each case
> [1] 276 127

o$survival[1:5, 1:5]
>           [,1]      [,2]      [,3]      [,4]      [,5]
> [1,] 0.9600951 0.9125329 0.9002843 0.8725504 0.8423145
> [2,] 1.0000000 0.9999167 0.9997543 0.9996710 0.9995136
> [3,] 0.9959351 0.9921702 0.9877700 0.9782302 0.9768478
> [4,] 0.9954334 0.9906795 0.9871662 0.9857532 0.9841598
> [5,] 1.0000000 0.9998401 0.9967281 0.9947621 0.9946241
o$survival.oob[1:5, 1:5]
>           [,1]      [,2]      [,3]      [,4]      [,5]
> [1,] 0.9655403 0.9160407 0.9050698 0.8755058 0.8428749
> [2,] 1.0000000 1.0000000 0.9995281 0.9995281 0.9995281
> [3,] 0.9957842 0.9926934 0.9881592 0.9768084 0.9752430
> [4,] 0.9942668 0.9873056 0.9850606 0.9838238 0.9819504
> [5,] 1.0000000 1.0000000 0.9962979 0.9942830 0.9939347

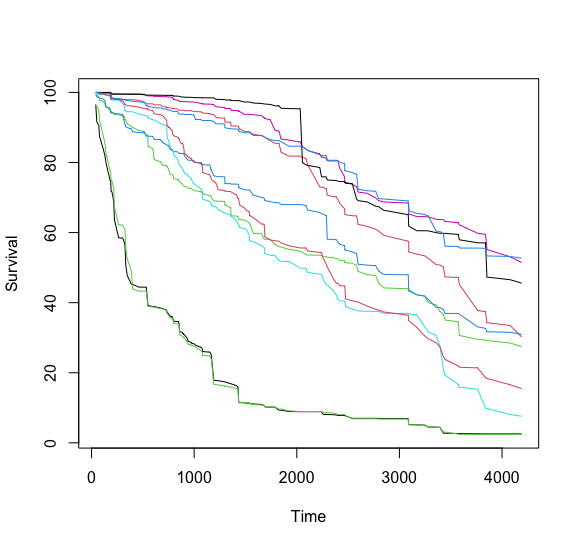

## plot survival curves for first 10 individuals
matplot(o$time.interest,
        100 * t(o$survival.oob[1:10, ]),
        xlab = "Time", ylab = "Survival", type = "l", lty = 1)

Key quantities

o$chf          --->    inbag CHF estimator for each case
o$chf.oob      --->    OOB CHF estimator for each case
dim(o$chf)
> [1] 276 127
dim(o$chf.oob)
> [1] 276 127
o$chf[1:5, 1:5]
>             [,1]         [,2]        [,3]         [,4]         [,5]
> [1,] 0.039904941 8.981063e-02 0.103197429 0.1338071668 0.1686493781
> [2,] 0.000000000 8.333333e-05 0.000245671 0.0003326275 0.0004976107
> [3,] 0.004064919 7.977572e-03 0.012491370 0.0227012085 0.0244150195
> [4,] 0.004566626 9.643876e-03 0.013209059 0.0146954141 0.0163487486
> [5,] 0.000000000 1.598746e-04 0.003271896 0.0052661647 0.0054040957
o$chf.oob[1:5, 1:5]
>             [,1]        [,2]         [,3]         [,4]         [,5]
> [1,] 0.034459694 0.085894243 0.0978252512 0.1301985027 0.1682733452
> [2,] 0.000000000 0.000000000 0.0004719118 0.0004719118 0.0004719118
> [3,] 0.004215783 0.007519603 0.0122166452 0.0244321624 0.0264688132
> [4,] 0.005733225 0.013259881 0.0155376855 0.0168153866 0.0187680623
> [5,] 0.000000000 0.000000000 0.0037021133 0.0057619372 0.0061102479

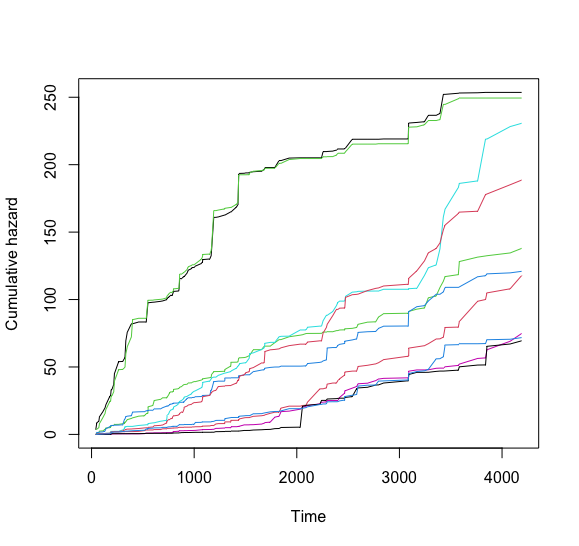

## plot survival curves for first 10 individuals
matplot(o$time.interest,
        100 * t(o$chf.oob[1:10, ]),
        xlab = "Time", ylab = "Cumulative hazard", type = "l", lty = 1)

Key quantities

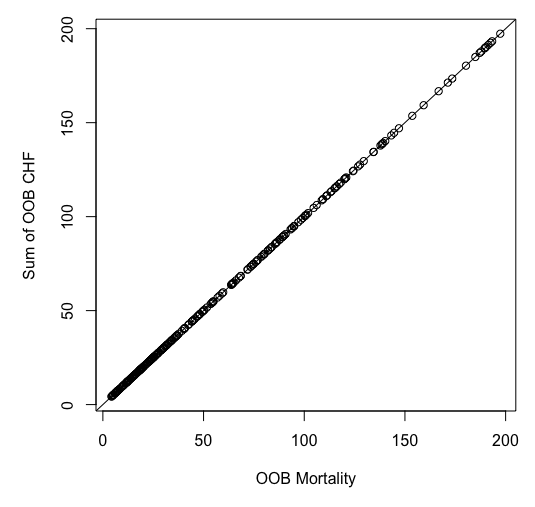

Connection between mortality and the CHF

Mortality for a case i equals the expected number of deaths if all patients were the same as case i. Mortality is obtained by summing the CHF

plot(o$predicted.oob, rowSums(o$chf.oob), xlab="OOB Mortality", ylab="Sum of OOB CHF")
abline(0,1)

Survival example: PBC Mayo Clinic

Split rules

Family splitrule
Regression
Quantile Regression		 mse
la.quantile.regr, quantile.regr, mse
Classification
Imbalanced Two-Class		 gini, auc, entropy
gini, auc, entropy
Survival logrank, bs.gradient, logrankscore
Competing Risk logrankCR, logrank
Multivariate Regression
Multivariate Classification
Multivariate Mixed Regression
Multivariate Quantile Regression
Multivariate Mixed Quantile Regression		 mv.mse, mahalanobis
mv.gini
mv.mix
mv.mse
mv.mix
Unsupervised
sidClustering
Breiman (Shi-Horvath)		 unsupv
\(\{\)mv.mse, mv.gini, mv.mix\(\}\), mahalanobis
gini, auc, entropy

Split rules

log-rank splitting [11] (default)

o <- rfsrc(Surv(time, status) ~ ., data = pbc,
                  splitrule="logrank") ## default splitrule
o
                         Sample size: 276
                    Number of deaths: 129
                     Number of trees: 500
           Forest terminal node size: 15
       Average no. of terminal nodes: 14.326
No. of variables tried at each split: 5
              Total no. of variables: 17
       Resampling used to grow trees: swor
    Resample size used to grow trees: 174
                            Analysis: RSF
                              Family: surv
                      Splitting rule: logrank *random*
       Number of random split points: 10
                          (OOB) CRPS: 553.15107271
                   (OOB) stand. CRPS: 0.13198546
   (OOB) Requested performance error: 0.18814768

Split rules

Gradient-based brier score splitting

o <- rfsrc(Surv(time, status) ~ ., data = pbc,
                  splitrule="bs.gradient")
o
                         Sample size: 276
                    Number of deaths: 129
                     Number of trees: 500
           Forest terminal node size: 15
       Average no. of terminal nodes: 13.226
No. of variables tried at each split: 5
              Total no. of variables: 17
       Resampling used to grow trees: swor
    Resample size used to grow trees: 174
                            Analysis: RSF
                              Family: surv
                      Splitting rule: bs.gradient *random*
       Number of random split points: 10
                          (OOB) CRPS: 570.11311519
                   (OOB) stand. CRPS: 0.13603272
   (OOB) Requested performance error: 0.19299269

Tip

The time horizon used for the Brier score is set to the 90th percentile of the observed event times. This can be over-ridden by the option prob, which must be a value between 0 and 1 (set to .90 by default)

Split rules

log-rank score splitting [12]

o <- rfsrc(Surv(time, status) ~ ., data = pbc,
                  splitrule="logrankscore")
o
                         Sample size: 276
                    Number of deaths: 129
                     Number of trees: 500
           Forest terminal node size: 15
       Average no. of terminal nodes: 13.46
No. of variables tried at each split: 5
              Total no. of variables: 17
       Resampling used to grow trees: swor
    Resample size used to grow trees: 174
                            Analysis: RSF
                              Family: surv
                      Splitting rule: logrankscore *random*
       Number of random split points: 10
                          (OOB) CRPS: 626.32256755
                   (OOB) stand. CRPS: 0.14944466
   (OOB) Requested performance error: 0.19231977

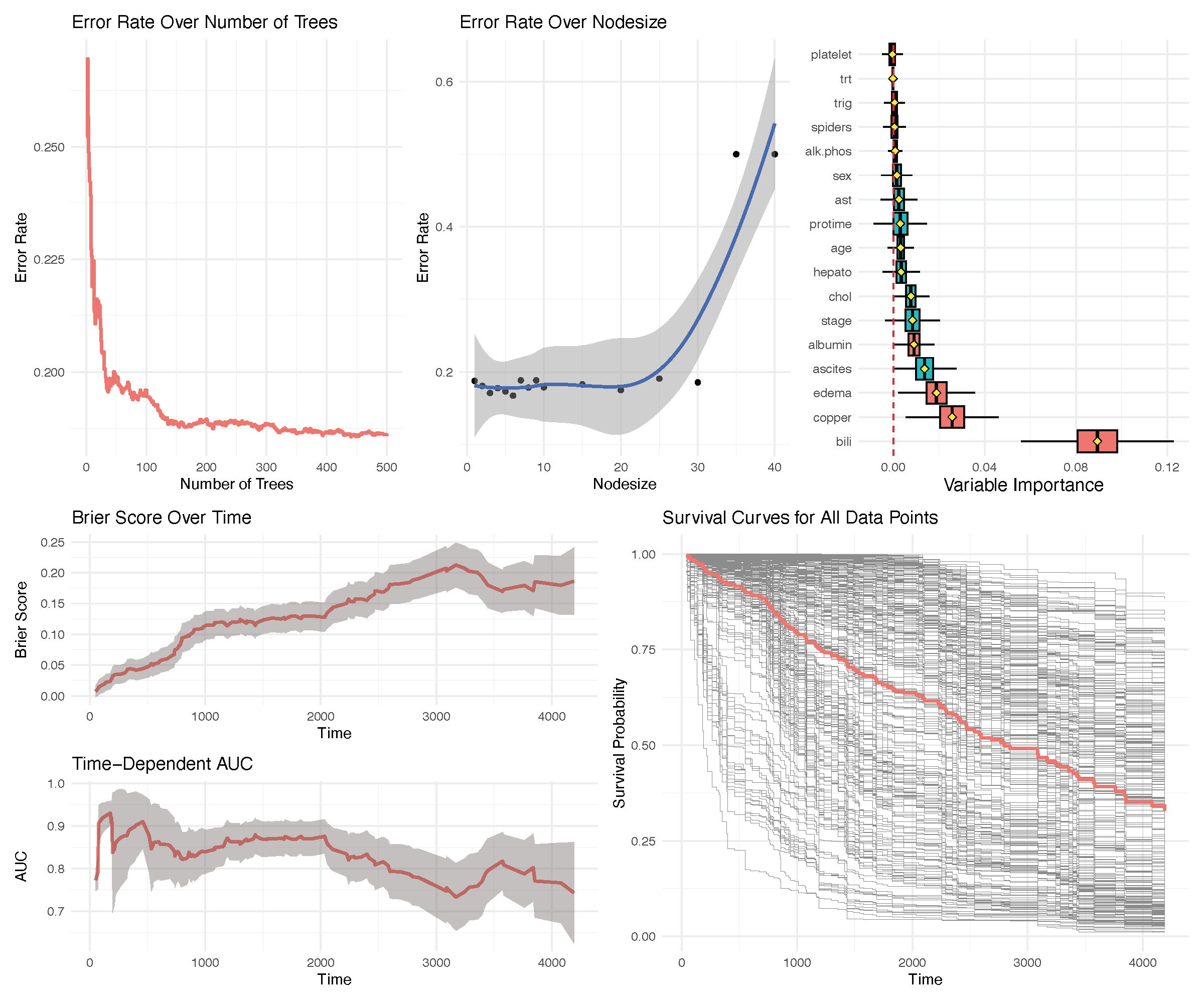

The run.rfsrc function for an overview

run.rfsrc(Surv(time, status) ~ ., data = pbc)

Outline

Part I: Training

  1. Quick start
  2. Data structures allowed
  3. Training (grow) with examples
    (regression, classification, survival)

Part II: Inference and Prediction

  1. Inference (OOB)
  2. Prediction Error
  3. Prediction
  4. Restore
  5. Partial Plots

Part III: Variable Selection

  1. VIMP
  2. Subsampling (Confidence Intervals)
  3. Minimal Depth
  4. VarPro

Part IV: Advanced Examples

  1. Class Imbalanced Data
  2. Competing Risks
  3. Multivariate Forests
  4. Missing data imputation

References

https://randomforestsrc.org

1. Breiman L. Random forests. Machine Learning. 2001;45:5–32.
2. Ishwaran H, Lu M, Kogalur UB. randomForestSRC: Getting started with randomForestSRC vignette. 2021. http://randomforestsrc.org/articles/getstarted.html.
3. Ishwaran H, Lu M, Kogalur UB. randomForestSRC: Forest weights, in-bag (IB) and out-of-bag (OOB) ensembles vignette. 2021. http://randomforestsrc.org/articles/forestWgt.html.
4. Breiman L, Friedman J, Stone CJ, Olshen RA. Classification and regression trees. CRC press; 1984.
5. De Cock D. Ames, iowa: Alternative to the boston housing data as an end of semester regression project. Journal of Statistics Education. 2011;19.
6. Ceccarelli M, Barthel FP, Malta TM, Sabedot TS, Salama SR, Murray BA, et al. Molecular profiling reveals biologically discrete subsets and pathways of progression in diffuse glioma. Cell. 2016;164:550–63.
7. Ishwaran H, Lu M, Kogalur UB. randomForestSRC: AUC splitting for multiclass problems vignette. 2022. http://randomforestsrc.org/articles/aucsplit.html.
8. Ishwaran H, Lauer MS, Blackstone EH, Lu M, Kogalur UB. randomForestSRC: Random survival forests vignette. 2021. http://randomforestsrc.org/articles/survival.html.
9. Ishwaran H, Kogalur UB, Blackstone EH, Lauer MS. Random survival forests. The Annals of Applied Statistics. 2008;2:841–60.
10. Therneau T, Grambsch P. Modeling survival data: Extending the cox model. 2000.
11. Segal MR. Regression trees for censored data. Biometrics. 1988;35–47.
12. Hothorn T, Lausen B. On the exact distribution of maximally selected rank statistics. Computational Statistics & Data Analysis. 2003;43:121–37.
