Tree-Based Machine Learning Methods for Prediction, Variable Selection and Causal Inference

Part IV

Hemant Ishwaran and Min Lu
University of Miami

Advanced examples

1. Class imbalanced data
2. Competing Risks
3. Multivariate Forests

Imbalanced classification

Family	Example Grow Call with Formula Specification
Regression Quantile Regression	rfsrc(Ozone~., data = airquality) quantreg(mpg~., data = mtcars)
Classification Imbalanced Two-Class	rfsrc(Species~., data = iris) imbalanced(status~., data = breast)
Survival	rfsrc(Surv(time, status)~., data = veteran)
Competing Risk	rfsrc(Surv(time, status)~., data = wihs)
Multivariate Regression Multivariate Mixed Regression Multivariate Quantile Regression Multivariate Mixed Quantile Regression	rfsrc(Multivar(mpg, cyl)~., data = mtcars) rfsrc(cbind(Species,Sepal.Length)~.,data=iris) quantreg(cbind(mpg, cyl)~., data = mtcars) quantreg(cbind(Species,Sepal.Length)~.,data=iris)
Unsupervised sidClustering Breiman (Shi-Horvath)	rfsrc(data = mtcars) sidClustering(data = mtcars) sidClustering(data = mtcars, method = "sh")

Class imbalanced data

In many real world applications, a common problem is the occurrence of imbalanced data where one class outcome (majority class, 0) is observed far more frequently than the other (minority class, 1)

1. Business analytics: customer churn data
2. Software and text recognition: spam filtering, detecting coding errors
3. Fault detection and quality control in industrial systems
4. Biomedical data when prevelance of target group is relatively small or event measured over short interval

Example from causal analysis

An investigator studying the value of adjuvant treatment versus surgery in esophageal patients needed to apply causal techniques for their analysis. This required predicting the treatment group using patient features (treatment overlap analysis). There are \(N_0=6649\) surgery patients and \(N_1=988\) adjuvant treatment patients, giving an imbalanced ratio of \(6649/988 \approx 6.8\).

Running a RF classifier on the data, they obtained the following confusion matrix (from the OOB ensemble):

		predicted
	surgery	adjuvant	error
surgery	6549	100	.015
adjuvant	694	294	.702

Overall error rate: 10.4%

Example from causal analysis

Running a RF classifier on the data, they obtained the following confusion matrix (from the OOB ensemble):

		predicted
	surgery	adjuvant	error
surgery	6549	100	.015
adjuvant	694	294	.702

Overall error rate: 10.4%

The TNR (true postive rate) and TPR (false positive rate) are: \[ \text{TNR} = \frac{6549}{6549+100}=98.5\%,\hskip10pt \text{TPR} = \frac{294}{694+294}=29.8\%,\hskip10pt \] The geometric mean (gmean) is \[ \text{gmean}=\sqrt{.985\times .298} = 54.2\% \] This is very poor, random guessing gives 0.5

Metrics for evaluating class imbalanced performance

Avoid using AUC, misclassification error and other standard metrics and instead use:

1. gmean
2. PR-AUC (precision recall, AUC)

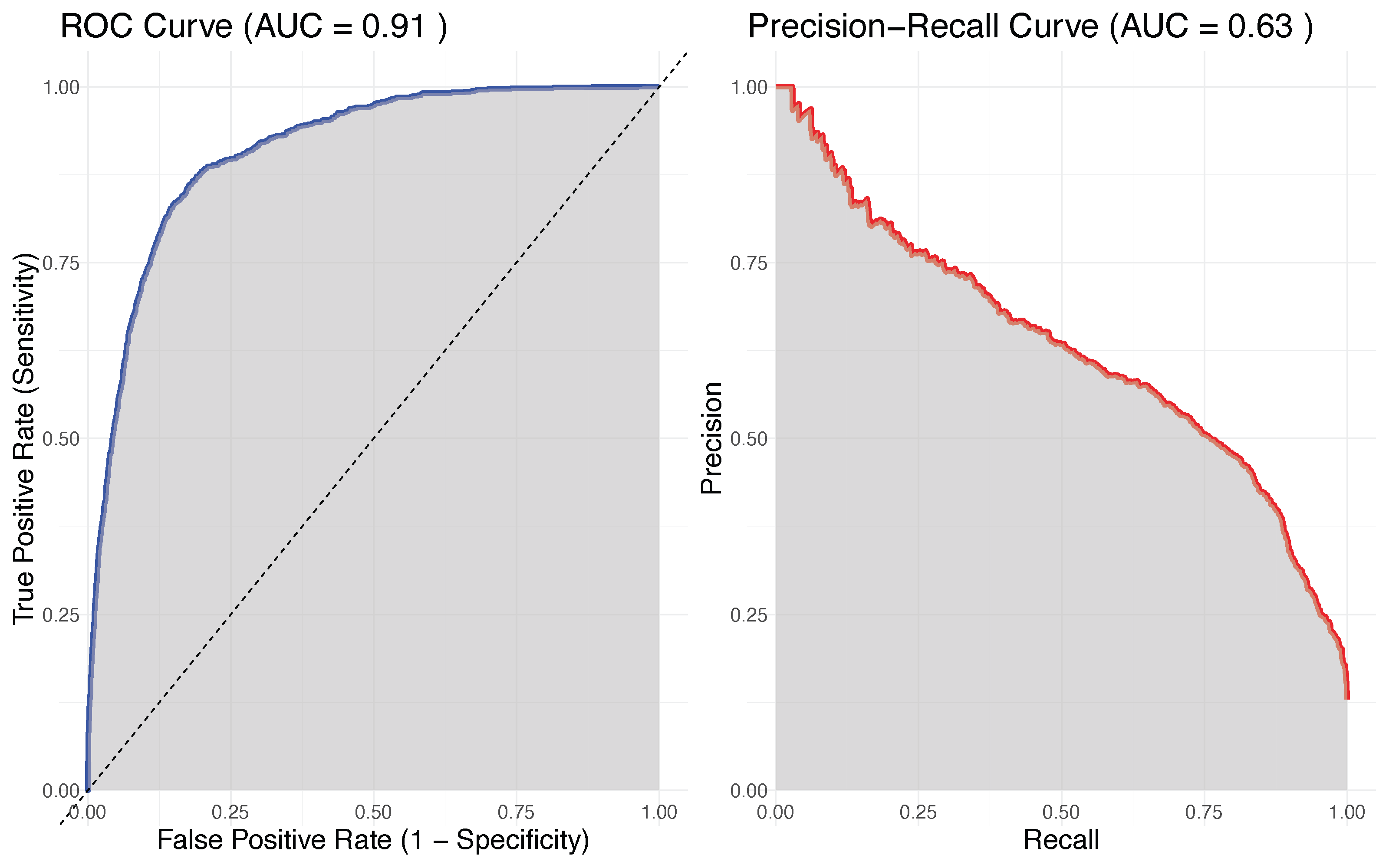

ROC curve and PR-AUC curve for RF classifier from esophageal study of adjuvant treatment versus surgery

Why does the classifier have such poor performance?

The problem here (and for other ML methods) is the equal misclassification costs used by the Bayes decision rule \[ \delta(\mathbf{x})=1 \hskip5pt\text{if}\hskip5pt P\{Y = 1 \mid \mathbf{X} = \mathbf{x}\} \ge \frac{1}{2} \]

In imbalanced data, the probability of an event is very small!! Therefore, the classifier tends to classify all cases as class labels 0

RFQ (random forest quantile) classifier

Use a different threshold. In place of 0.5 (the median) we use \(\pi=P\{Y=1\}\) \[ \delta(\mathbf{x})=1 \hskip5pt\text{if}\hskip5pt P\{Y = 1 \mid \mathbf{X} = \mathbf{x}\} \ge \pi \approx \frac{N_1}{N_0+N_1} \]

This has a dual optimality property (cost-weighted Bayes optimal and maximizes TNR+TPR)

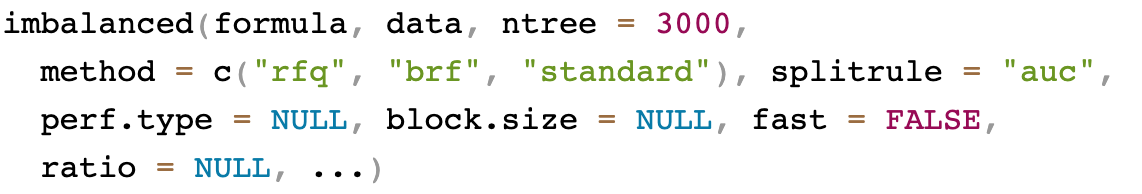

General call to imbalanced

Classification example: Glioma

Imbalanced class

Tip

imbalanced() is useful if you have two imbalanced class labels

data(glioma, package = "varPro")
table(glioma$y)
>     Classic-like            Codel      G-CIMP-high       G-CIMP-low         LGm6-GBM Mesenchymal-like          PA-like
>              148              174              249               25               41              215               26

## make a super majority class
class.combine <- c("Classic-like", "Codel", "G-CIMP-high", "Mesenchymal-like")
ynew <- factor(1 * !is.element(glioma$y, class.combine))

## replace y with the new super class
glioma2 <- glioma
glioma2$y <- ynew
table(glioma2$y)
>    0   1
>  786  94

Imbalanced classification: Glioma

standard RF classifier

## standard RF classifier
o1 <- rfsrc(y~.,glioma2)
print(o1)
                         Sample size: 880
           Frequency of class labels: 786, 94
                     Number of trees: 500
           Forest terminal node size: 1
       Average no. of terminal nodes: 29.726
No. of variables tried at each split: 36
              Total no. of variables: 1241
       Resampling used to grow trees: swor
    Resample size used to grow trees: 556
                            Analysis: RF-C
                              Family: class
                      Splitting rule: gini *random*
       Number of random split points: 10
                    Imbalanced ratio: 8.3617
                   (OOB) Brier score: 0.03639723
        (OOB) Normalized Brier score: 0.1455889
                           (OOB) AUC: 0.98621488
                      (OOB) Log-loss: 0.1298745
                        (OOB) PR-AUC: 0.9170852
                        (OOB) G-mean: 0.72932496
   (OOB) Requested performance error: 0.05, 0, 0.46808511

Confusion matrix:

          predicted
  observed   0  1 class.error
         0 786  0      0.0000
         1  44 50      0.4681

      (OOB) Misclassification rate: 0.05

Imbalanced classification: Glioma

RFQ classifier

## RFQ classifier
o2 <- imbalanced(y~.,glioma2)
print(o2)
                         Sample size: 880
           Frequency of class labels: 786, 94
                     Number of trees: 3000
           Forest terminal node size: 1
       Average no. of terminal nodes: 26.557
No. of variables tried at each split: 36
              Total no. of variables: 1241
       Resampling used to grow trees: swor
    Resample size used to grow trees: 556
                            Analysis: RFQ
                              Family: class
                      Splitting rule: auc *random*
       Number of random split points: 10
                    Imbalanced ratio: 8.3617
                   (OOB) Brier score: 0.03362459
        (OOB) Normalized Brier score: 0.13449834
                           (OOB) AUC: 0.99057983
                      (OOB) Log-loss: 0.12037099
                        (OOB) PR-AUC: 0.94065642
                        (OOB) G-mean: 0.93830013
   (OOB) Requested performance error: 0.06169987

Confusion matrix:

          predicted
  observed   0  1 class.error
         0 692 94      0.1196
         1   0 94      0.0000

      (OOB) Misclassification rate: 0.1068182

Imbalanced classification: Glioma

Balanced RF (BRF)

1. BRF under-samples the majority class to balance the frequencies
2. This is an example of a data-level method
3. Surprisingly, BRF is actually an example of a quantile classifier and is theoretically equivalent to RFQ
4. However, in finite samples it is less efficient

Imbalanced classification: Glioma

## BRF classifier
o3 <- imbalanced(y~.,glioma2, method = "brf")
print(o3)
                         Sample size: 880
           Frequency of class labels: 786, 94
                     Number of trees: 3000
           Forest terminal node size: 1
       Average no. of terminal nodes: 15.1263
No. of variables tried at each split: 36
              Total no. of variables: 1241
       Resampling used to grow trees: swr
    Resample size used to grow trees: 188
                            Analysis: RF-C
                              Family: class
                      Splitting rule: auc *random*
       Number of random split points: 10
                    Imbalanced ratio: 8.3617
                   (OOB) Brier score: 0.04844594
        (OOB) Normalized Brier score: 0.19378376
                           (OOB) AUC: 0.98658708
                      (OOB) Log-loss: 0.19773628
                        (OOB) PR-AUC: 0.92307335
                        (OOB) G-mean: 0.91219607
   (OOB) Requested performance error: 0.08780393

Confusion matrix:

          predicted
  observed   0  1 class.error
         0 759 27      0.0344
         1  13 81      0.1383

      (OOB) Misclassification rate: 0.04545455

Imbalanced classification: Glioma

## BRF - brute force
o4 <- rfsrc(y~.,glioma2,
            case.wt = randomForestSRC:::make.wt(glioma2$y),
            sampsize = randomForestSRC:::make.size(glioma2$y))
print(o4)
                         Sample size: 880
           Frequency of class labels: 786, 94
                     Number of trees: 500
           Forest terminal node size: 1
       Average no. of terminal nodes: 19.234
No. of variables tried at each split: 36
              Total no. of variables: 1241
       Resampling used to grow trees: swor
    Resample size used to grow trees: 188
                            Analysis: RF-C
                              Family: class
                      Splitting rule: gini *random*
       Number of random split points: 10
                    Imbalanced ratio: 8.3617
                   (OOB) Brier score: 0.05301977
        (OOB) Normalized Brier score: 0.21207909
                           (OOB) AUC: 0.98412376
                      (OOB) Log-loss: 0.20939848
                        (OOB) PR-AUC: 0.90805735
                        (OOB) G-mean: 0.90192259
   (OOB) Requested performance error: 0.06477273, 0.05597964, 0.13829787

Confusion matrix:

          predicted
  observed   0  1 class.error
         0 742 44      0.0560
         1  13 81      0.1383

      (OOB) Misclassification rate: 0.06477273

Imbalanced classification: Glioma

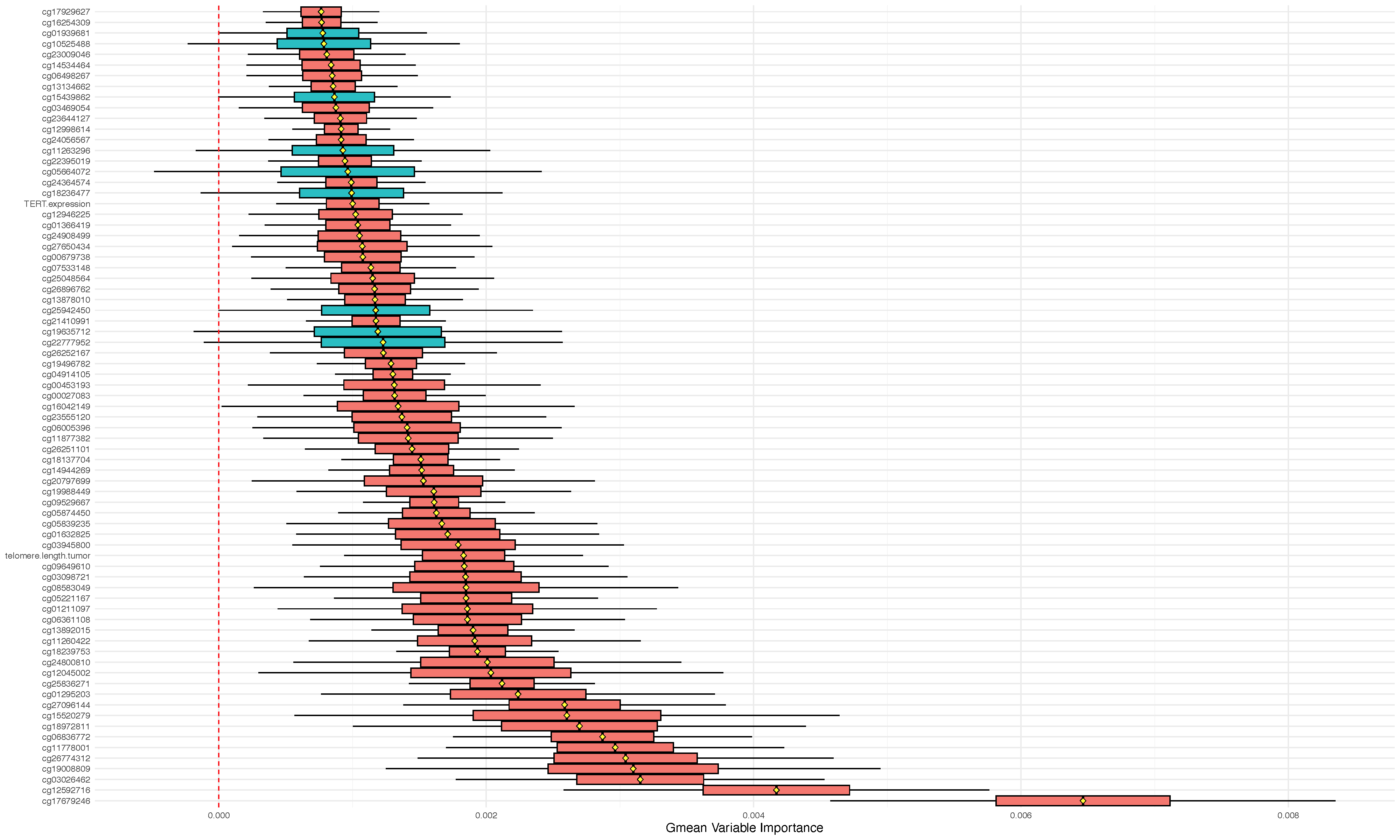

## gmean variable importance with ci
o2 <- imbalanced(y~.,glioma2, importance="permute", block.size=20)
oo2 <- subsample(o2)
plot.subsample(oo2)

Competing risk

Family	Example Grow Call with Formula Specification
Regression Quantile Regression	rfsrc(Ozone~., data = airquality) quantreg(mpg~., data = mtcars)
Classification Imbalanced Two-Class	rfsrc(Species~., data = iris) imbalanced(status~., data = breast)
Survival	rfsrc(Surv(time, status)~., data = veteran)
Competing Risk	rfsrc(Surv(time, status)~., data = wihs)
Multivariate Regression Multivariate Mixed Regression Multivariate Quantile Regression Multivariate Mixed Quantile Regression	rfsrc(Multivar(mpg, cyl)~., data = mtcars) rfsrc(cbind(Species,Sepal.Length)~.,data=iris) quantreg(cbind(mpg, cyl)~., data = mtcars) quantreg(cbind(Species,Sepal.Length)~.,data=iris)
Unsupervised sidClustering Breiman (Shi-Horvath)	rfsrc(data = mtcars) sidClustering(data = mtcars) sidClustering(data = mtcars, method = "sh")

Competing risk

This is a specialized survival (time to event) analysis setting:

1. In competing risk the individual is subject to more than one event.
2. For example, a patient listed to receive a heart transplant can die while on the waitlist, or they can receive the heart. The patient is subject to two competing risks “death” and “transplant”
3. Right-censoring also occurs just like in standard survival analysis

Competing risk quantities of interest

There are two primary quantities of interest:

1. The cumulative incidence function (CIF) equal to the probability of observing an event of interest by time \(t\)

1. Use the splitrule logrankCR (the default)

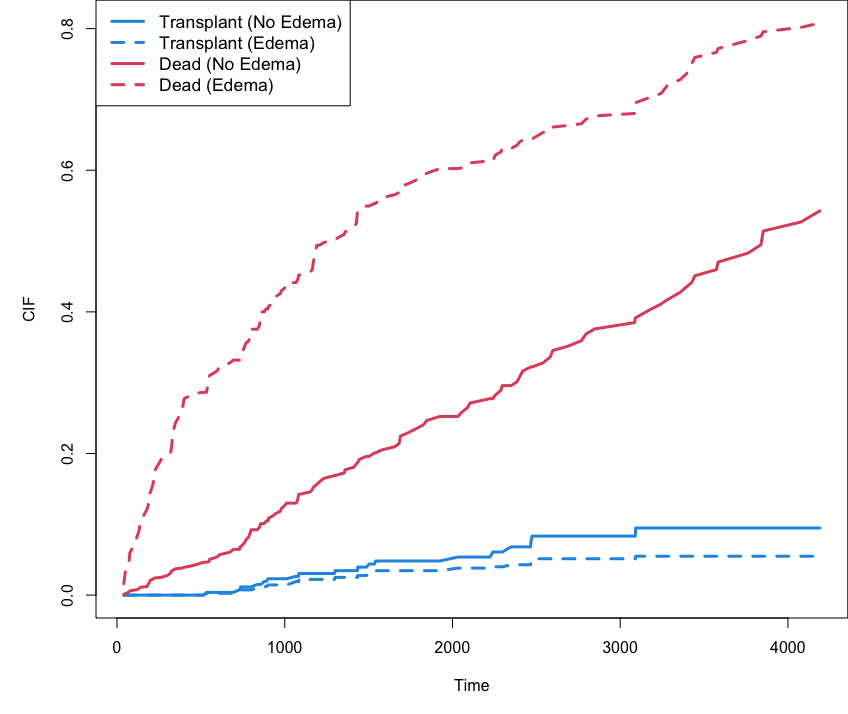

2. Plot the values for obj$cif
3. Use minimal depth for importance

2. The cause-specific hazard function equal to the instantaneous risk of event of interest \(j\) occuring at time \(t\)

1. Use the splitrule logrank and option cause=j
2. Use option importance='permute' to obtain importance and extract column \(j\) of obj$importance


Competing risk example: PBC Mayo Clinic

time	status	trt	age	sex	ascites	hepato	spiders	edema	bili	chol	albumin	copper	alk.phos	ast	trig	platelet	protime
400	2	1	58.76523	f	1	1	1	1.0	14.5	261	2.60	156	1718.0	137.95	172	190	12.2
4500	0	1	56.44627	f	0	1	1	0.0	1.1	302	4.14	54	7394.8	113.52	88	221	10.6
1012	2	1	70.07255	m	0	0	0	0.5	1.4	176	3.48	210	516.0	96.10	55	151	12.0
1925	2	1	54.74059	f	0	1	1	0.5	1.8	244	2.54	64	6121.8	60.63	92	183	10.3
1504	1	2	38.10541	f	0	1	1	0.0	3.4	279	3.53	143	671.0	113.15	72	136	10.9
2503	2	2	66.25873	f	0	1	0	0.0	0.8	248	3.98	50	944.0	93.00	63	NA	11.0
1832	0	2	55.53457	f	0	1	0	0.0	1.0	322	4.09	52	824.0	60.45	213	204	9.7
2466	2	2	53.05681	f	0	0	0	0.0	0.3	280	4.00	52	4651.2	28.38	189	373	11.0
2400	2	1	42.50787	f	0	0	1	0.0	3.2	562	3.08	79	2276.0	144.15	88	251	11.0
51	2	2	70.55989	f	1	0	1	1.0	12.6	200	2.74	140	918.0	147.25	143	302	11.5

data(pbc, package = "survival")

pbc$id <- NULL ## remove the ID

## status at endpoint, 0/1/2 for censored, transplant, dead
pbc.cr <- pbc

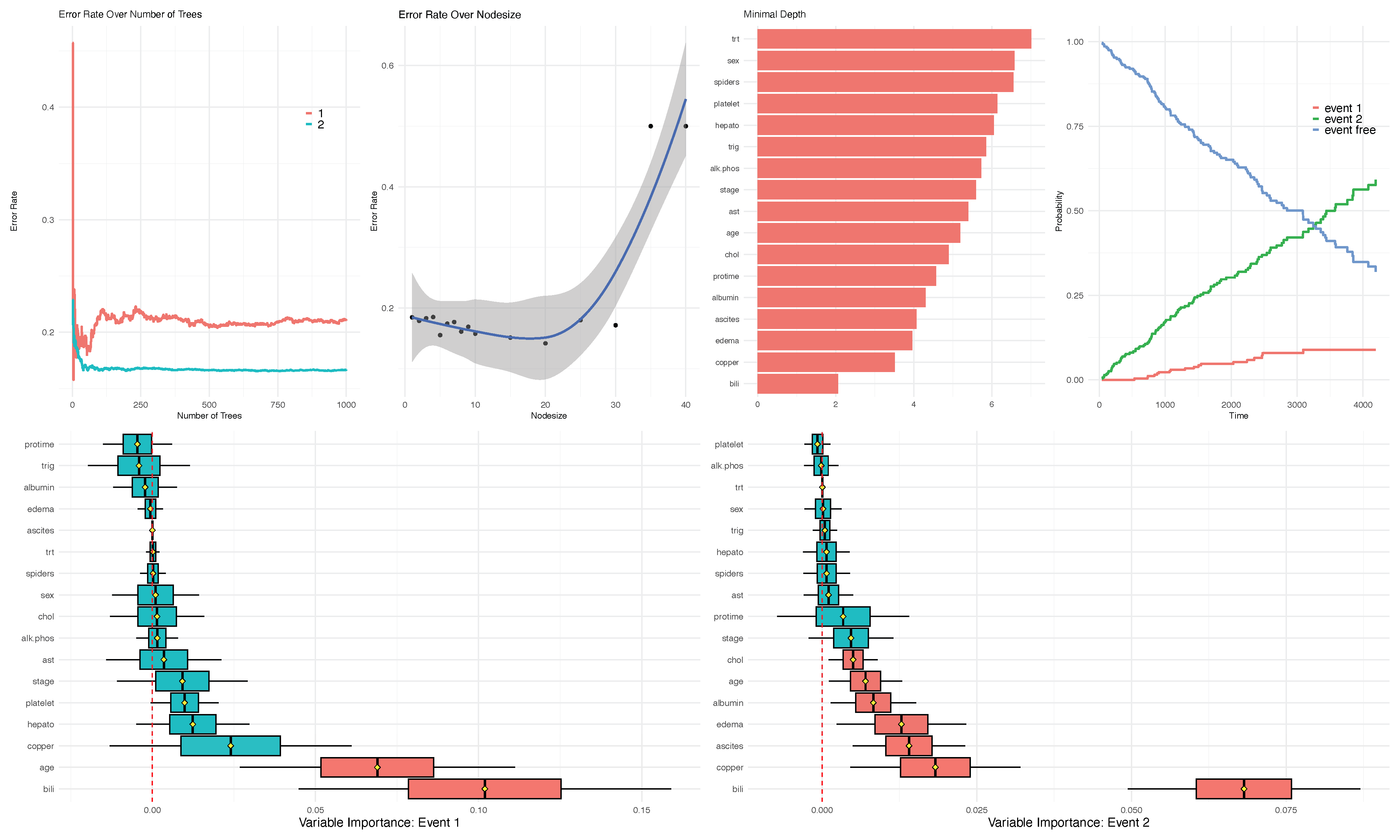

Competing risk example: PBC Mayo Clinic

## canonical example: default Gray's splitting-rule
o <- rfsrc(Surv(time, status) ~ ., pbc)
o
                         Sample size: 276
                    Number of events: 18, 111
                     Number of trees: 500
           Forest terminal node size: 15
       Average no. of terminal nodes: 13.118
No. of variables tried at each split: 5
              Total no. of variables: 17
       Resampling used to grow trees: swor
    Resample size used to grow trees: 174
                            Analysis: RSF
                              Family: surv-CR
                      Splitting rule: logrankCR *random*
       Number of random split points: 10
   (OOB) Requested performance error: 0.18408881, 0.1666207

Tip

rfsrc recognize competing risk problem automatically when using the survival formula

event specific and non-event specific variable selection

## canonical example: default Gray's splitting-rule
## status: 0/1/2 for censored, transplant, dead
o <- rfsrc(Surv(time, status) ~ ., pbc)

## log-rank splitting where each event type is treated as the event of interest
## log-rank cause-1 specific splitting and targeted VIMP for cause 1="transplant"
o.log1 <- rfsrc(Surv(time, status) ~ ., pbc,
                splitrule = "logrank", cause = 1, importance = "permute")

## log-rank cause-2 specific splitting and targeted VIMP for cause 2="death"
o.log2 <- rfsrc(Surv(time, status) ~ ., pbc,
                splitrule = "logrank", cause = 2, importance = "permute")

## extract minimal depth from the Gray split forest: non-event specific
## extract VIMP from the log-rank forests: event-specific
var.perf <- data.frame(md = max.subtree(o)$order[, 1],
                       vimp1 = 100 * o.log1$importance[ ,1],
                       vimp2 = 100 * o.log2$importance[ ,2])
print(var.perf[order(var.perf$md), ], digits = 2)

event specific and non-event specific variable selection

## canonical example: default Gray's splitting-rule
## status: 0/1/2 for censored, transplant, dead
o <- rfsrc(Surv(time, status) ~ ., pbc)

## log-rank splitting where each event type is treated as the event of interest
## log-rank cause-1 specific splitting and targeted VIMP for cause 1="transplant"
o.log1 <- rfsrc(Surv(time, status) ~ ., pbc,
                splitrule = "logrank", cause = 1, importance = "permute")

## log-rank cause-2 specific splitting and targeted VIMP for cause 2="death"
o.log2 <- rfsrc(Surv(time, status) ~ ., pbc,
                splitrule = "logrank", cause = 2, importance = "permute")

## extract minimal depth from the Gray split forest: non-event specific
## extract VIMP from the log-rank forests: event-specific
var.perf <- data.frame(md = max.subtree(o)$order[, 1],
                       vimp1 = 100 * o.log1$importance[ ,1],
                       vimp2 = 100 * o.log2$importance[ ,2])
print(var.perf[order(var.perf$md), ], digits = 2)

          md  vimp1   vimp2
bili     2.0  6.407  5.9263
copper   3.5  2.944  2.0612
edema    4.3 -0.140  1.1829
albumin  4.3 -0.820  0.6809
ascites  4.5 -0.012  1.2883
protime  4.7 -0.832  0.5708
age      5.0  7.742  0.8564
chol     5.0  0.304  0.5097
ast      5.6 -0.345  0.3896
alk.phos 6.0 -1.068  0.0504
trig     6.0 -0.485  0.0089
stage    6.1  0.866  0.3493
platelet 6.3  0.409 -0.1191
hepato   6.6  0.772  0.1488
spiders  7.2 -0.121  0.1349
sex      7.3  0.125  0.0289
trt      7.9 -0.217 -0.0174

CIF stratified by edema

## cumulative incidence function (CIF) for transplant and dead stratified by edema
cif <- o$cif.oob; Time <- o$time.interest
edema <- o$xvar$edema
cif.transplant <- cbind(apply(cif[,,1][edema == 0,], 2, mean),
                        apply(cif[,,1][edema > 0,], 2, mean))
cif.dead  <- cbind(apply(cif[,,2][edema == 0,], 2, mean),
                   apply(cif[,,2][edema > 0,], 2, mean))
matplot(Time, cbind(cif.transplant, cif.dead), type = "l",
        lty = c(1,2,1,2), col = c(4, 4, 2, 2), lwd = 3, ylab = "CIF")
legend("topleft", legend = c("Transplant (No Edema)", "Transplant (Edema)",
                  "Dead (No Edema)", "Dead (Edema)"),
       lty = c(1,2,1,2), col = c(4, 4, 2, 2), lwd = 3, cex = 1.1)

The run.rfsrc function for an overview

## tip!!! perform the same analysis as above with one line
run.rfsrc(Surv(time, status) ~ ., pbc, ntree=1000, alpha=.10)

The run.rfsrc function for an overview

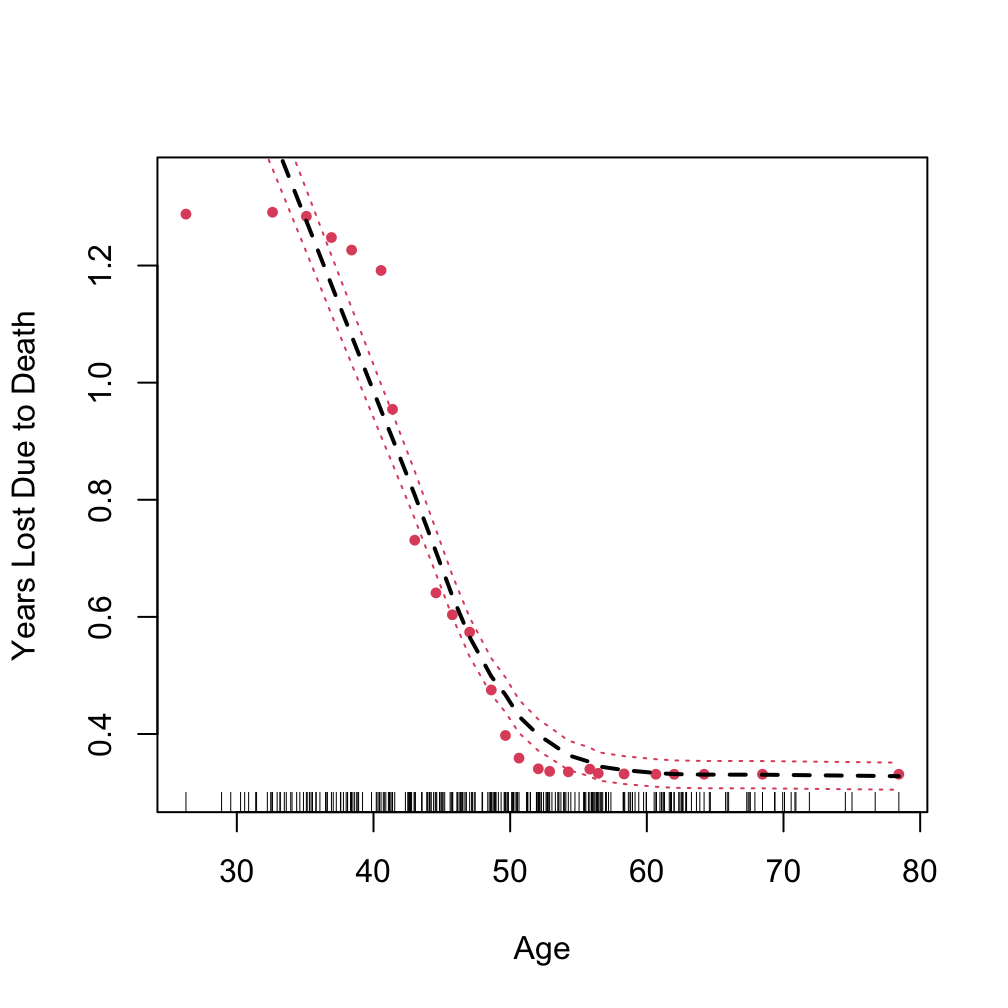

Partial plot

using “target” to specify the event of interest

pbc.cr$time <- pbc.cr$time/365; o <- rfsrc(Surv(time, status) ~ ., pbc.cr)
## target = an integer value between 1 and J indicating the event of interest
plot.variable(o, target = 1,
              xvar.names = "age", partial = TRUE, smooth.lines = TRUE)

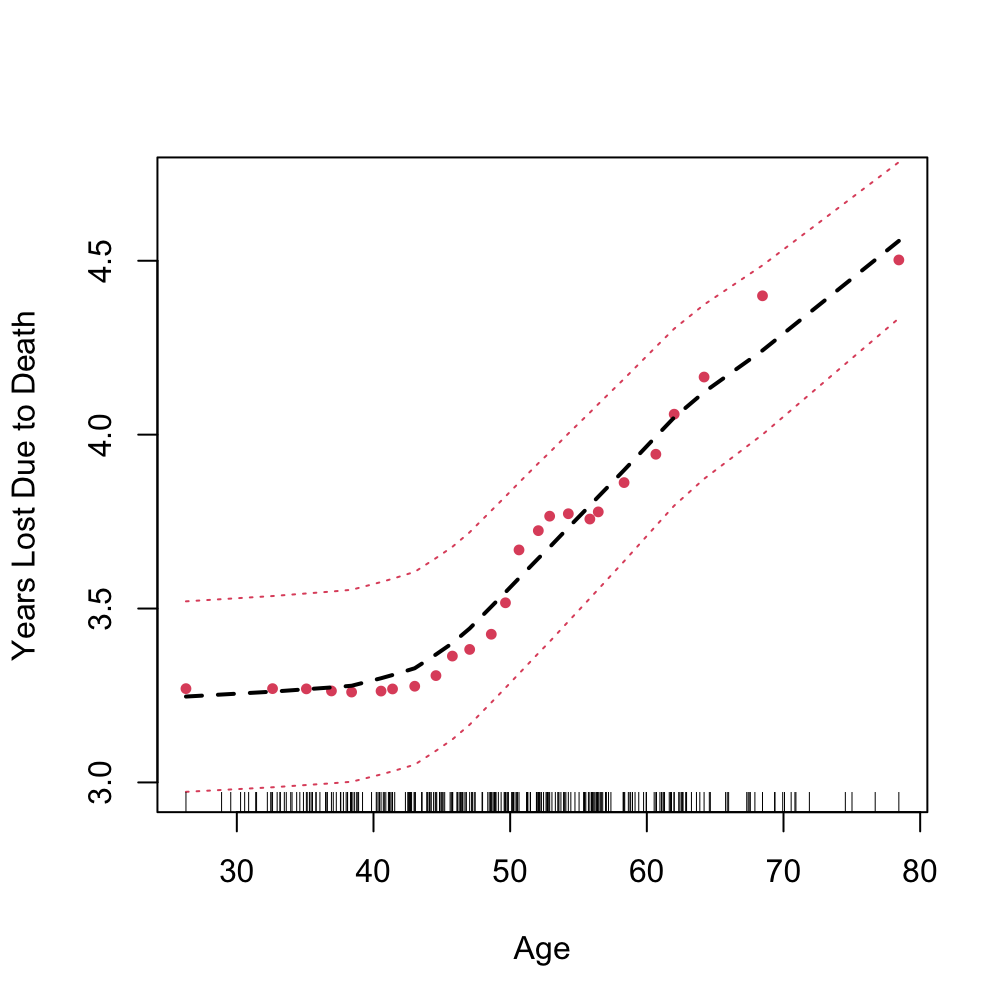

Partial plot

using “target” to specify the event of interest

## target = an integer value between 1 and J indicating the event of interest
## where J is the number of event types
plot.variable(o, target = 1,
              xvar.names = "age", partial = TRUE, smooth.lines = TRUE)

## target = an integer value between 1 and J indicating the event of interest
## where J is the number of event types
plot.variable(o, target = 2,
              xvar.names = "age", partial = TRUE, smooth.lines = TRUE)

Multivariate analysis

Family	Example Grow Call with Formula Specification
Regression Quantile Regression	rfsrc(Ozone~., data = airquality) quantreg(mpg~., data = mtcars)
Classification Imbalanced Two-Class	rfsrc(Species~., data = iris) imbalanced(status~., data = breast)
Survival	rfsrc(Surv(time, status)~., data = veteran)
Competing Risk	rfsrc(Surv(time, status)~., data = wihs)
Multivariate Regression Multivariate Mixed Regression Multivariate Quantile Regression Multivariate Mixed Quantile Regression	rfsrc(Multivar(mpg, cyl)~., data = mtcars) rfsrc(cbind(Species,Sepal.Length)~.,data=iris) quantreg(cbind(mpg, cyl)~., data = mtcars) quantreg(cbind(Species,Sepal.Length)~.,data=iris)
Unsupervised sidClustering Breiman (Shi-Horvath)	rfsrc(data = mtcars) sidClustering(data = mtcars) sidClustering(data = mtcars, method = "sh")

Multivariate example: Nutrigenomic Study

Study the effects of five diet treatments on 21 liver lipids and 120 hepatic gene expression in wild-type and PPAR-alpha deficient mice. We regress gene expression, diet and genotype (x-variables) on lipid expressions (multivariate y-responses) [4]

C14.0	C16.0	C18.0	C16.1n.9	C16.1n.7	C18.1n.9	C18.1n.7	diet	genotype	X36b4	ACAT1	ACAT2	ACBP	ACC1	ACC2	ACOTH	ADISP	ADSS1	ALDH3
0.34	26.45	10.22	0.35	3.10	16.98	2.41	lin	wt	-0.42	-0.65	-0.84	-0.34	-1.29	-1.13	-0.93	-0.98	-1.19	-0.68
0.38	24.04	9.93	0.55	2.54	20.07	3.92	sun	wt	-0.44	-0.68	-0.91	-0.32	-1.23	-1.06	-0.99	-0.97	-1.00	-0.62
0.36	23.70	8.96	0.55	2.65	22.89	3.96	sun	wt	-0.48	-0.74	-1.10	-0.46	-1.30	-1.09	-1.06	-1.08	-1.18	-0.75
0.22	25.48	8.14	0.49	2.82	21.92	2.52	fish	wt	-0.45	-0.69	-0.65	-0.41	-1.26	-1.09	-0.93	-1.02	-1.07	-0.71
0.37	24.80	9.63	0.46	2.85	21.38	2.96	ref	wt	-0.42	-0.71	-0.54	-0.38	-1.21	-0.89	-1.00	-0.95	-1.08	-0.76

data(nutrigenomic, package = "randomForestSRC")
names(nutrigenomic)
> [1]  "lipids"   "genes"    "diet"     "genotype"

dim(nutrigenomic$lipids)
> [1]  40 21
dim(nutrigenomic$genes)
> [1]  40 120

## diet and genotype are factors
head(nutrigenomic$diet)
> [1]  lin  sun  sun  fish ref  coc
> Levels: coc fish lin ref sun

head(nutrigenomic$genotype)
> [1]  wt wt wt wt wt wt
> Levels: ppar wt

Multivariate example: Nutrigenomic Study

## parse into y and x data
ydta <- nutrigenomic$lipids
xdta <- data.frame(nutrigenomic$genes,
                   diet = nutrigenomic$diet,
                   genotype = nutrigenomic$genotype)

## multivariate regression forest call
o <- rfsrc(get.mv.formula(colnames(ydta)),
            data.frame(ydta, xdta),
            importance=TRUE, nsplit = 10,
            splitrule = "mahalanobis")

> print(o)
                         Sample size: 40
                     Number of trees: 500
           Forest terminal node size: 5
       Average no. of terminal nodes: 4.776
No. of variables tried at each split: 41
              Total no. of variables: 122
              Total no. of responses: 21
         User has requested response: C14.0
       Resampling used to grow trees: swor
    Resample size used to grow trees: 25
                            Analysis: mRF-R
                              Family: regr+
                      Splitting rule: mahalanobis *random*
       Number of random split points: 10
                     (OOB) R squared: 0.13227364
   (OOB) Requested performance error: 0.55613339

Multivariate example: Nutrigenomic Study

## acquire the error rate for each of the 21-coordinates
## standardize to allow for comparison across coordinates
serr <- get.mv.error(o, standardize = TRUE)

> serr
    C14.0     C16.0     C18.0  C16.1n.9  C16.1n.7  C18.1n.9  C18.1n.7  C20.1n.9  C20.3n.9  C18.2n.6  C18.3n.6
0.8671651 0.6519146 0.6632005 0.7146180 0.8788133 0.7754928 0.8148566 0.7766450 0.8629866 0.8355279 0.9773675
 C20.2n.6  C20.3n.6  C20.4n.6  C22.4n.6  C22.5n.6  C18.3n.3  C20.3n.3  C20.5n.3  C22.5n.3  C22.6n.3
0.8439182 0.7456620 0.8378708 0.8915473 0.8949931 0.9301005 0.9438823 0.6832386 0.8470016 0.5416053

## acquire standardized VIMP
svimp <- get.mv.vimp(obj, standardize = TRUE)

> head(svimp)
              C14.0         C16.0         C18.0      C16.1n.9     C16.1n.7     C18.1n.9      C18.1n.7      C20.1n.9      C20.3n.9      C18.2n.6      C18.3n.6
X36b4 -0.0011838300 -0.0011120623 -2.986438e-03 -0.0023431724 -0.001224286 -0.002843073 -0.0015607315 -0.0005896246 -0.0000214573  0.0004547212 -0.0006680341
ACAT1 -0.0046534735  0.0029068448  9.230050e-04  0.0022818757 -0.005663879  0.003297788 -0.0031493826 -0.0016189507 -0.0013414155 -0.0002053584 -0.0010019447
ACAT2  0.0136148438  0.0081002291  2.995972e-03  0.0111641579  0.008484230  0.021038781  0.0173969634  0.0055616191  0.0041388219  0.0072896355 -0.0005133367
ACBP   0.0036475488  0.0335889422  1.050479e-02  0.0046146024  0.003332181  0.001875450  0.0058926949  0.0127454125  0.0089004756  0.0127657144 -0.0004641915
ACC1  -0.0006048965 -0.0002409629 -2.053589e-03 -0.0008960043 -0.001153418 -0.001132043 -0.0006816805  0.0019148640 -0.0011168252  0.0005493523 -0.0003399971
ACC2   0.0091886014 -0.0029555916  2.252395e-05  0.0002228193  0.011012313  0.004644160  0.0098393504 -0.0004550441  0.0068958281  0.0056158617  0.0015149188
           C20.2n.6      C20.3n.6      C20.4n.6      C22.4n.6      C22.5n.6      C18.3n.3      C20.3n.3     C20.5n.3      C22.5n.3     C22.6n.3
X36b4 -0.0008007217 -0.0002797032 -9.960998e-05 -0.0016751088 -0.0011467476  0.0012917637  0.0009019783 -0.001953023 -0.0028467311 -0.004910317
ACAT1  0.0016278408  0.0015450041  1.460450e-03  0.0039728775 -0.0002436180 -0.0015271289 -0.0009404719  0.002487745  0.0085764654  0.002279551
ACAT2  0.0163623835  0.0039925515  1.082762e-02  0.0243844140  0.0234540852  0.0256505212  0.0340391420  0.025389222  0.0117149395  0.010141345
ACBP   0.0054934515  0.0086732580  7.791429e-04  0.0015539132 -0.0023644673  0.0211272426  0.0095212814  0.005460451  0.0069928914  0.009941966
ACC1  -0.0003640483 -0.0024303740 -1.041940e-03  0.0000992922 -0.0004331203 -0.0008617263 -0.0009875129 -0.001643309 -0.0007186863 -0.003139676
ACC2  -0.0010663573 -0.0007101648 -1.196044e-03 -0.0014820461 -0.0023466329  0.0017062532  0.0006796071  0.002065533 -0.0011808523  0.003489718

Split rules for multivariate regression

Family	splitrule
Regression Quantile Regression	mse la.quantile.regr, quantile.regr, mse
Classification Imbalanced Two-Class	gini, auc, entropy gini, auc, entropy
Survival	logrank, bs.gradient, logrankscore
Competing Risk	logrankCR, logrank
Multivariate Regression Multivariate Classification Multivariate Mixed Regression Multivariate Quantile Regression Multivariate Mixed Quantile Regression	mv.mse, mahalanobis mv.gini mv.mix mv.mse mv.mix
Unsupervised sidClustering Breiman (Shi-Horvath)	unsupv \(\{\)mv.mse, mv.gini, mv.mix\(\}\), mahalanobis gini, auc, entropy

Split rules

mahalanobis splitting

o <- rfsrc(get.mv.formula(colnames(ydta)),
             data.frame(ydta, xdta),
             importance=TRUE, nsplit = 10,
             splitrule = "mahalanobis")
> print(o)
                         Sample size: 40
                     Number of trees: 500
           Forest terminal node size: 5
       Average no. of terminal nodes: 4.776
No. of variables tried at each split: 41
              Total no. of variables: 122
              Total no. of responses: 21
         User has requested response: C14.0
       Resampling used to grow trees: swor
    Resample size used to grow trees: 25
                            Analysis: mRF-R
                              Family: regr+
                      Splitting rule: mahalanobis *random*
       Number of random split points: 10
                     (OOB) R squared: 0.13227364
   (OOB) Requested performance error: 0.55613339

Split rules

default composite (independence) splitting

o2 <- rfsrc(get.mv.formula(colnames(ydta)),
              data.frame(ydta, xdta),
              importance=TRUE, nsplit = 10)

> print(o2)
                         Sample size: 40
                     Number of trees: 500
           Forest terminal node size: 5
       Average no. of terminal nodes: 4.45
No. of variables tried at each split: 41
              Total no. of variables: 122
              Total no. of responses: 21
         User has requested response: C14.0
       Resampling used to grow trees: swor
    Resample size used to grow trees: 25
                            Analysis: mRF-R
                              Family: regr+
                      Splitting rule: mv *random*
       Number of random split points: 10
                     (OOB) R squared: 0.38963538
   (OOB) Requested performance error: 0.39118801

Split rules

compare VIMP under the two split rules

## compare standardized VIMP for top 25 variables
imp <- data.frame(mahalanobis = rowMeans(get.mv.vimp(o,  standardize = TRUE)),
                  default     = rowMeans(get.mv.vimp(o2, standardize = TRUE)))

> print(100 * imp[order(imp[,"mahalanobis"], decreasing = TRUE)[1:25], ])
         mahalanobis      default
diet      10.1554383 50.157098614
CYP3A11    6.9094201  7.390394227
CYP2c29    4.3809975  2.318045460
PMDCI      3.0008368  4.127672741
Ntcp       2.2830390  1.219654570
genotype   2.0163456  7.149894438
CYP4A10    1.2867264 -0.032280665
SR.BI      1.2344900  1.298163431
GSTpi2     1.1666067  2.810511592
THIOL      1.0794705  1.230275963
CAR1       1.0716575  2.320816813
SPI1.1     0.9334952  1.622246274
G6Pase     0.8642624  0.121325455
Lpin       0.8477423  3.189846540
AOX        0.8048813  0.004006545
mHMGCoAS   0.7943659  0.419456736
FAT        0.7777474 -0.045086923
PLTP       0.5652898  1.217041153
ACOTH      0.5040769  1.326771272
Tpbeta     0.5003534 -0.054229018
L.FABP     0.4952051 -0.061771625
Tpalpha    0.4547016  0.221539122
ACBP       0.4307385  0.985221687
BSEP       0.4185126  0.248101073
FDFT       0.4046558  0.235316552

The run.rfsrc function for an overview

library(randomForestSRC.run)
run.rfsrc(get.mv.formula(colnames(ydta)), data.frame(ydta, xdta))

Missing data imputation

Missing data can be imputed at various stages of the analysis

1. During training using na.action="na.impute" in rfsrc
2. When predicting data using na.action="na.impute" in predict
3. Prior to any analysis using impute

There are two methods used for imputing missing data

1. OTFI (On the fly imputation): simultaneously impute data while growing a tree
2. missForest: grow a forest using each variable as the \(y\) outcome and predicting the missing values

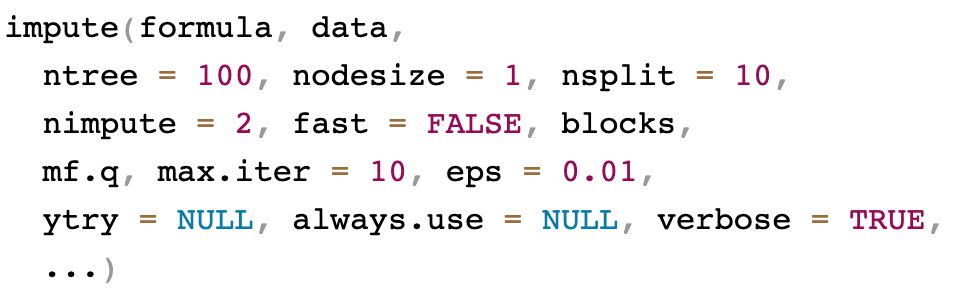

General call to impute

OTFI

1. Only non-missing data are used for split-statistics. Daughter node membership assignment for missing data is made by sampling from the non-missing inbag data
2. Can be used for supervised settings

data(pbc, package = "randomForestSRC")
pbc.impute <- impute(Surv(days, status)~.,pbc)

3. Also applicable to unsupervised settings. In this case multivariate splitting is applied to ytry variables which act as pseudo-responses

data(pbc, package = "randomForestSRC")
pbc.impute <- impute(data=pbc)

missForest and mForest

(multivariate missForest)

The imputation problem is turned into a series of regression problem

data(pbc, package = "randomForestSRC")
pbc.impute <- impute(data=pbc, mf.q=1)

For datasets with a large number of variables, instead of running \(p\) regressions for each cycle, we can group variables into multivariate regressions

data(housing, package = "randomForestSRC")
housing.impute <- impute(data=housing, mf.q=.5)
housing.impute <- impute(data=housing, mf.q=40)

Outline

Part I: Training

1. Quick start
2. Data structures allowed
3. Training (grow) with examples
   (regression, classification, survival)

Part II: Inference and Prediction

1. Inference (OOB)
2. Prediction Error
3. Prediction
4. Restore
5. Partial Plots

Part III: Variable Selection

1. VIMP
2. Subsampling (Confidence Intervals)
3. Minimal Depth
4. VarPro

Part IV: Advanced Examples

1. Class Imbalanced Data
2. Competing Risks
3. Multivariate Forests
4. Missing data imputation

References

1. Ishwaran H, O’Brien R, Lu M, Kogalur UB. randomForestSRC: Random forests quantile classifier (RFQ) vignette. 2021. http://randomforestsrc.org/articles/imbalance.html.

2. Ishwaran H, Gerds TA, Lau BM, Lu M, Kogalur UB. randomForestSRC: Competing risks vignette. 2021. http://randomforestsrc.org/articles/competing.html.

3. Ishwaran H, Tang F, Lu M, Kogalur UB. randomForestSRC: Multivariate splitting rule vignette. 2021. http://randomforestsrc.org/articles/mvsplit.html.

4. Martin PG, Guillou H, Lasserre F, Déjean S, Lan A, Pascussi J-M, et al. Novel aspects of PPAR\(\alpha\)-mediated regulation of lipid and xenobiotic metabolism revealed through a nutrigenomic study. Hepatology. 2007;45:767–77.
